Drum Screw filter
Efficient solution for separation, washing, dewatering, and compaction of screenings in one unit Pre-treatment
The Drum Screw filter is intended for very fine pre-treatment or special applications.
The unit is used especially in municipal WWTPs as pre-treatment for MBR or in industry.

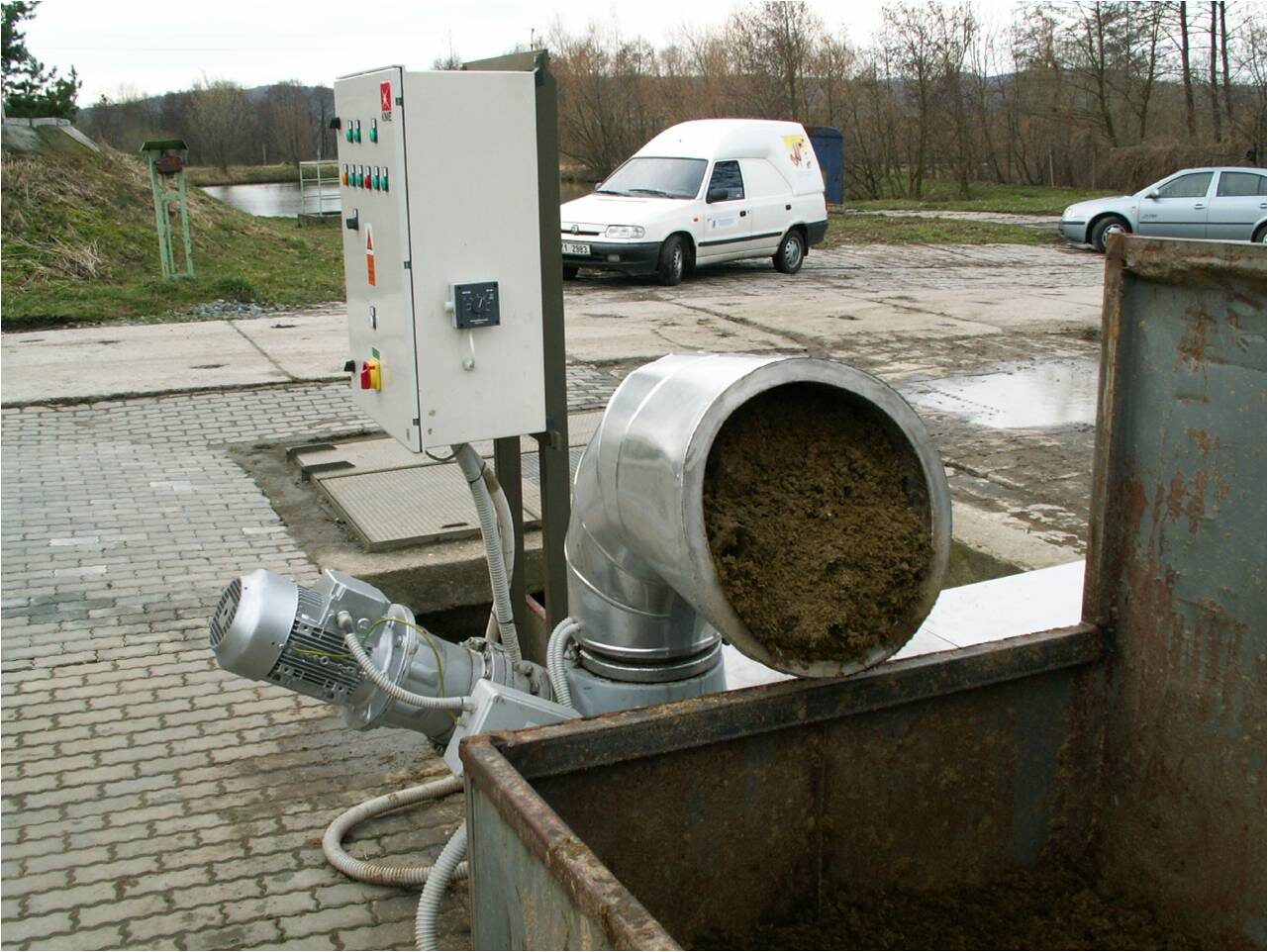

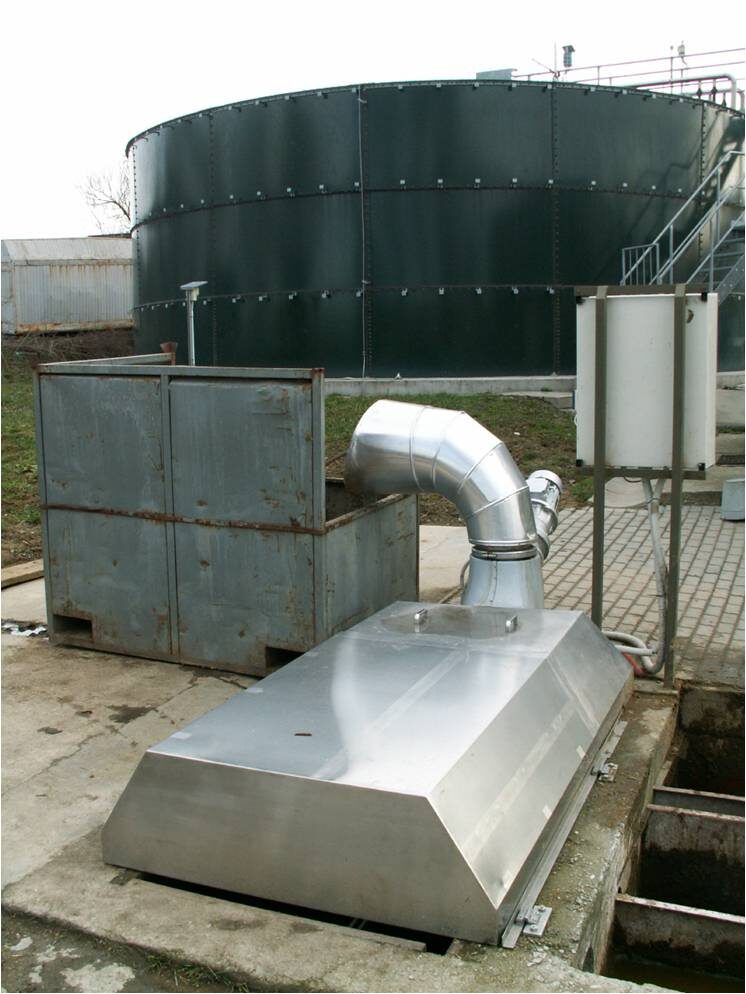

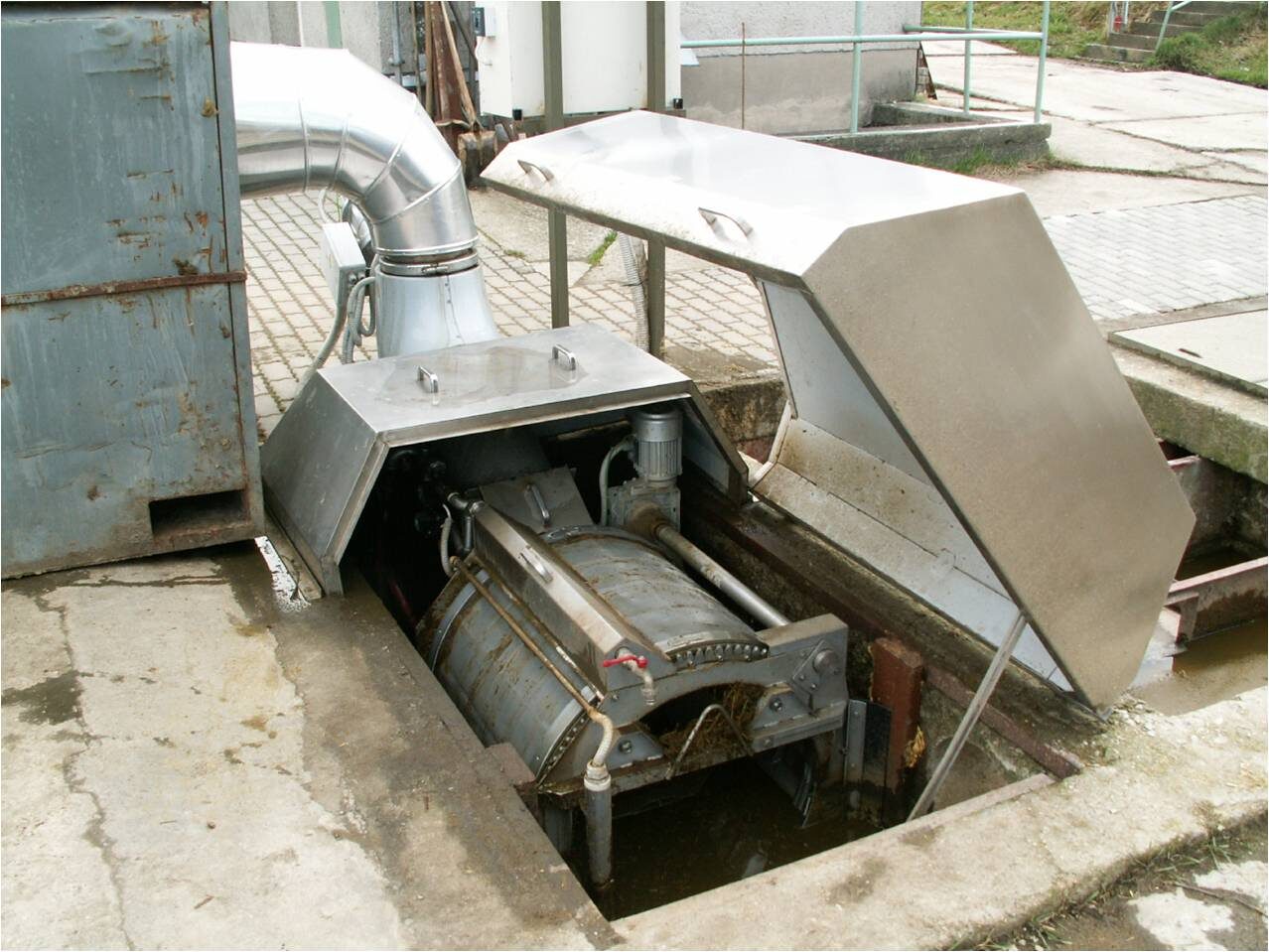

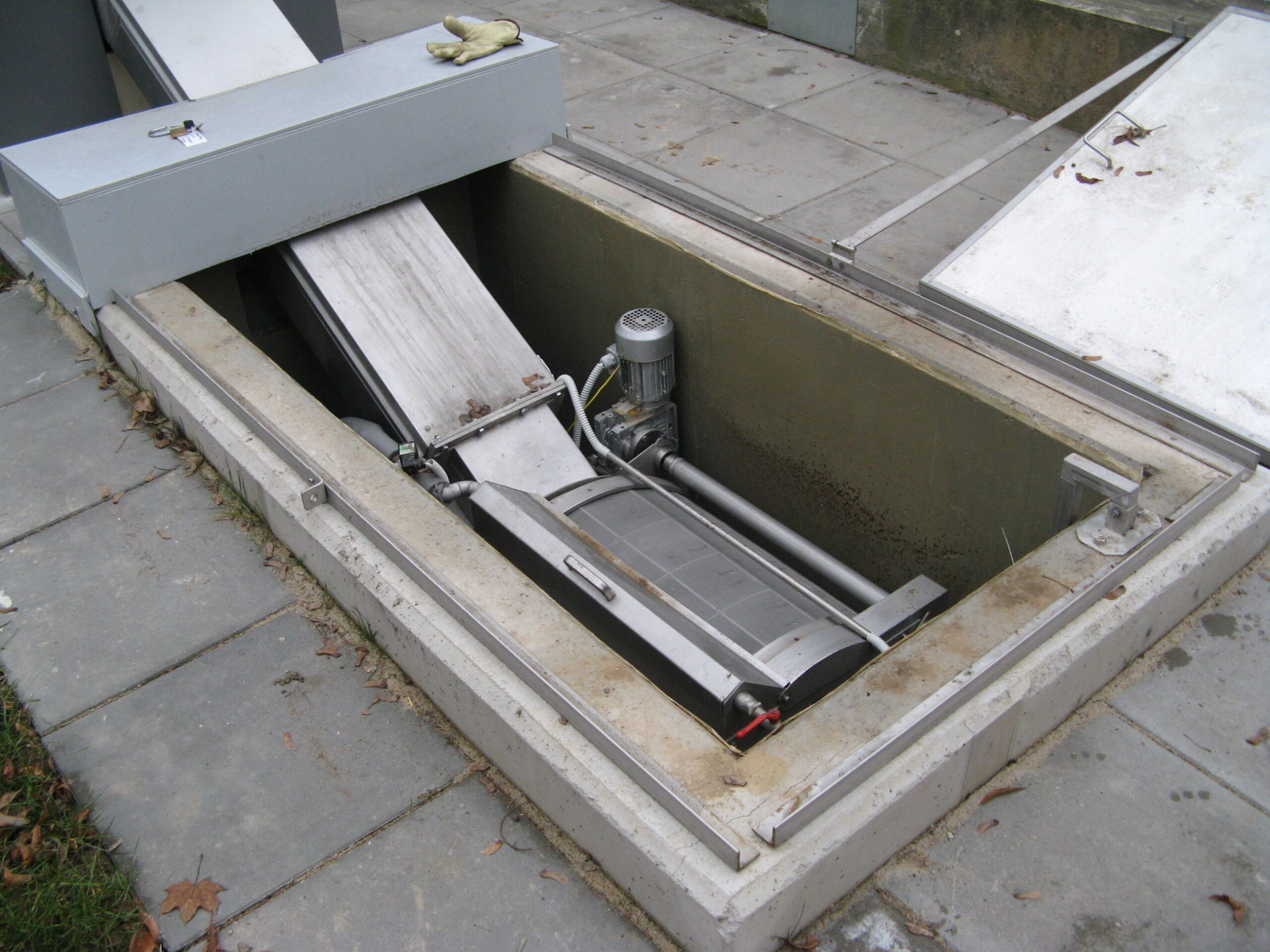

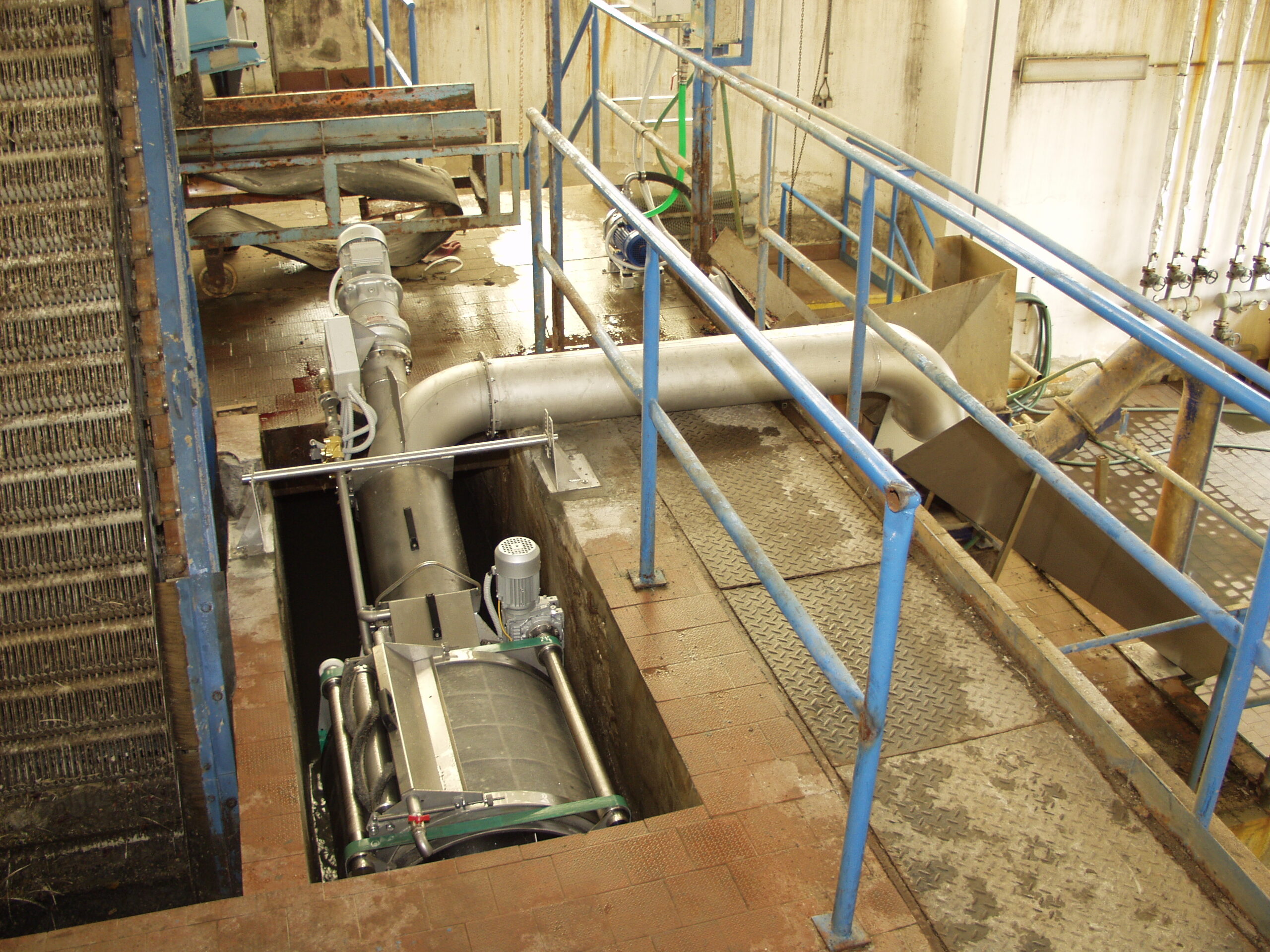

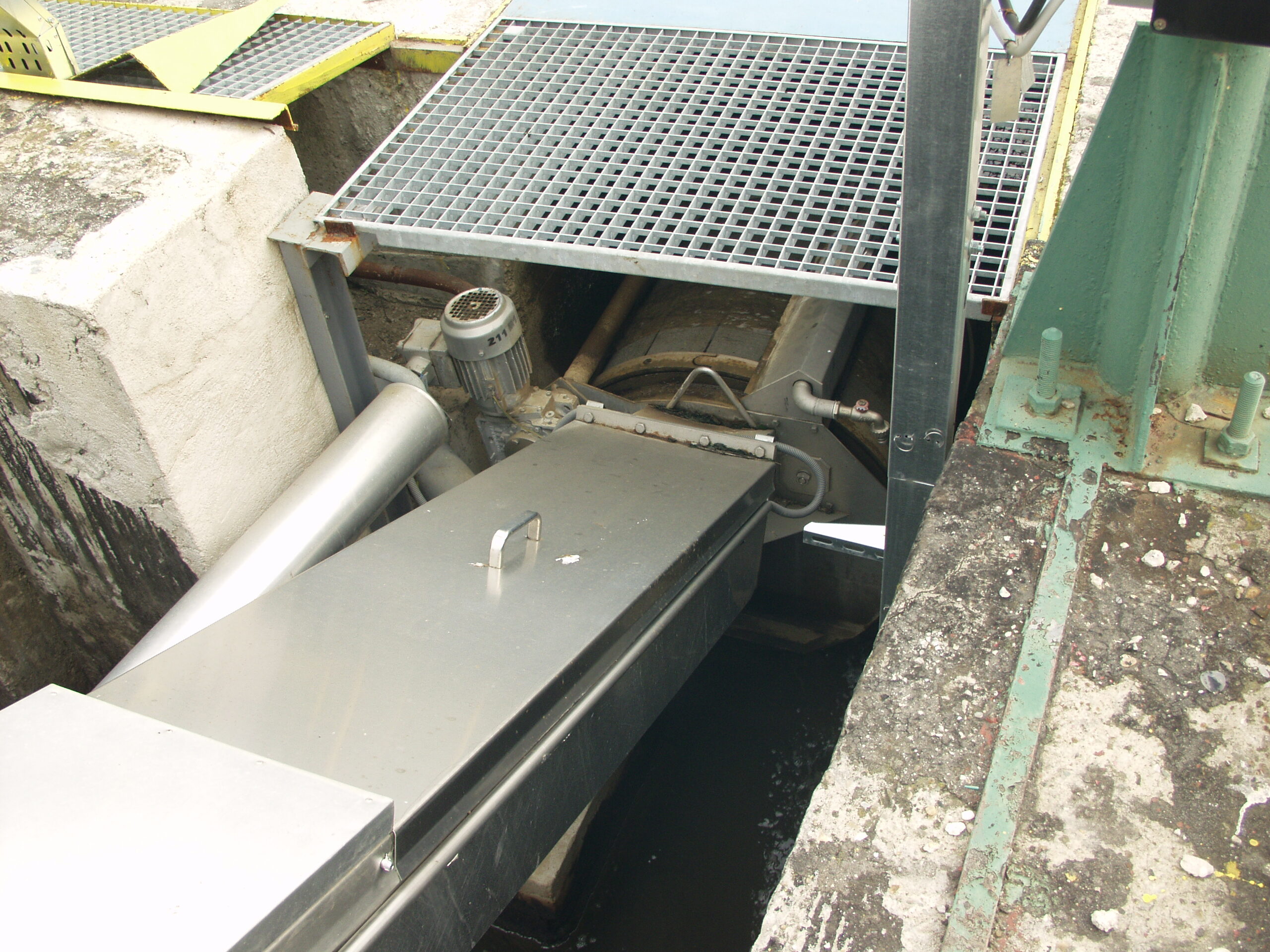

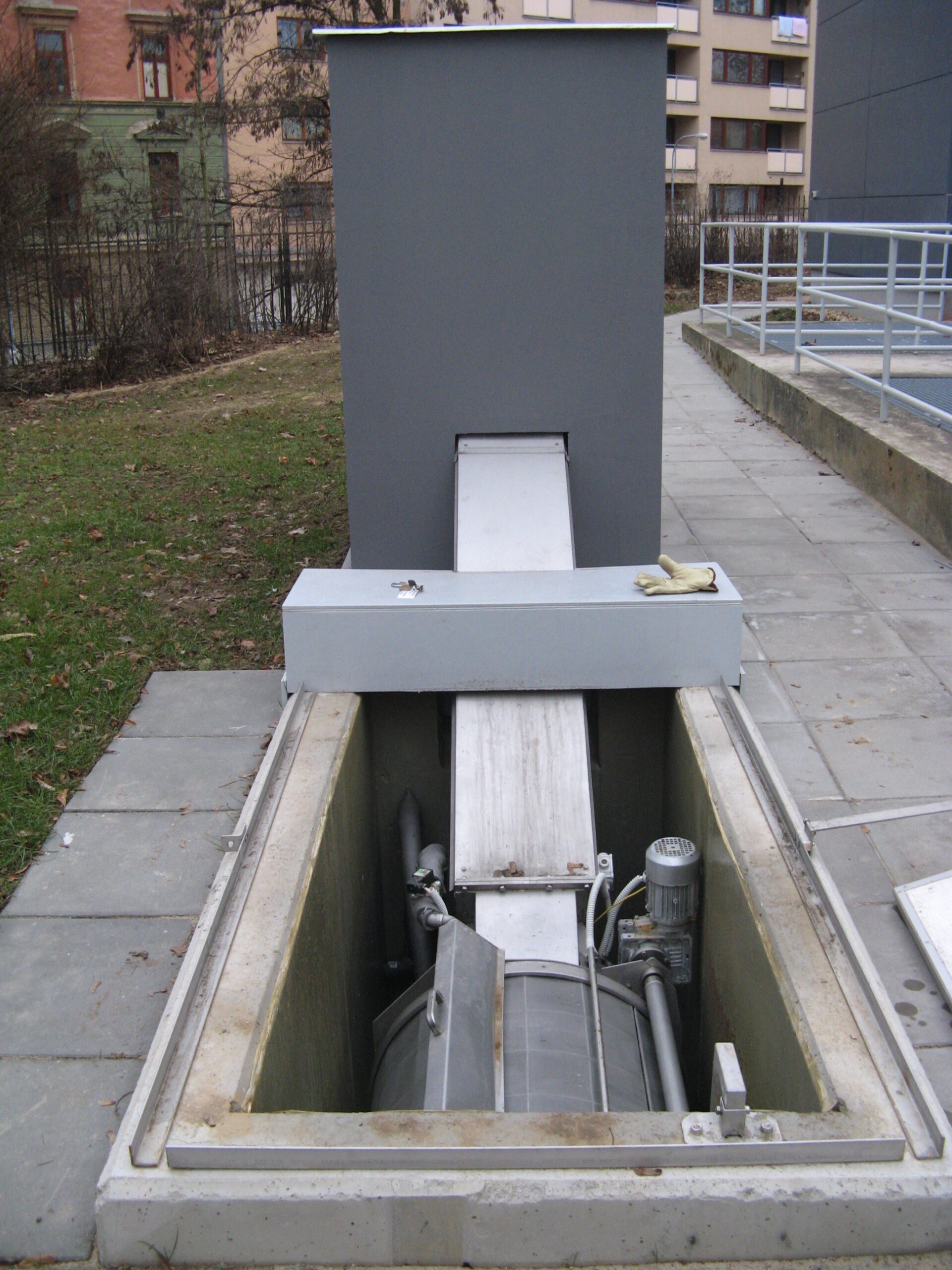

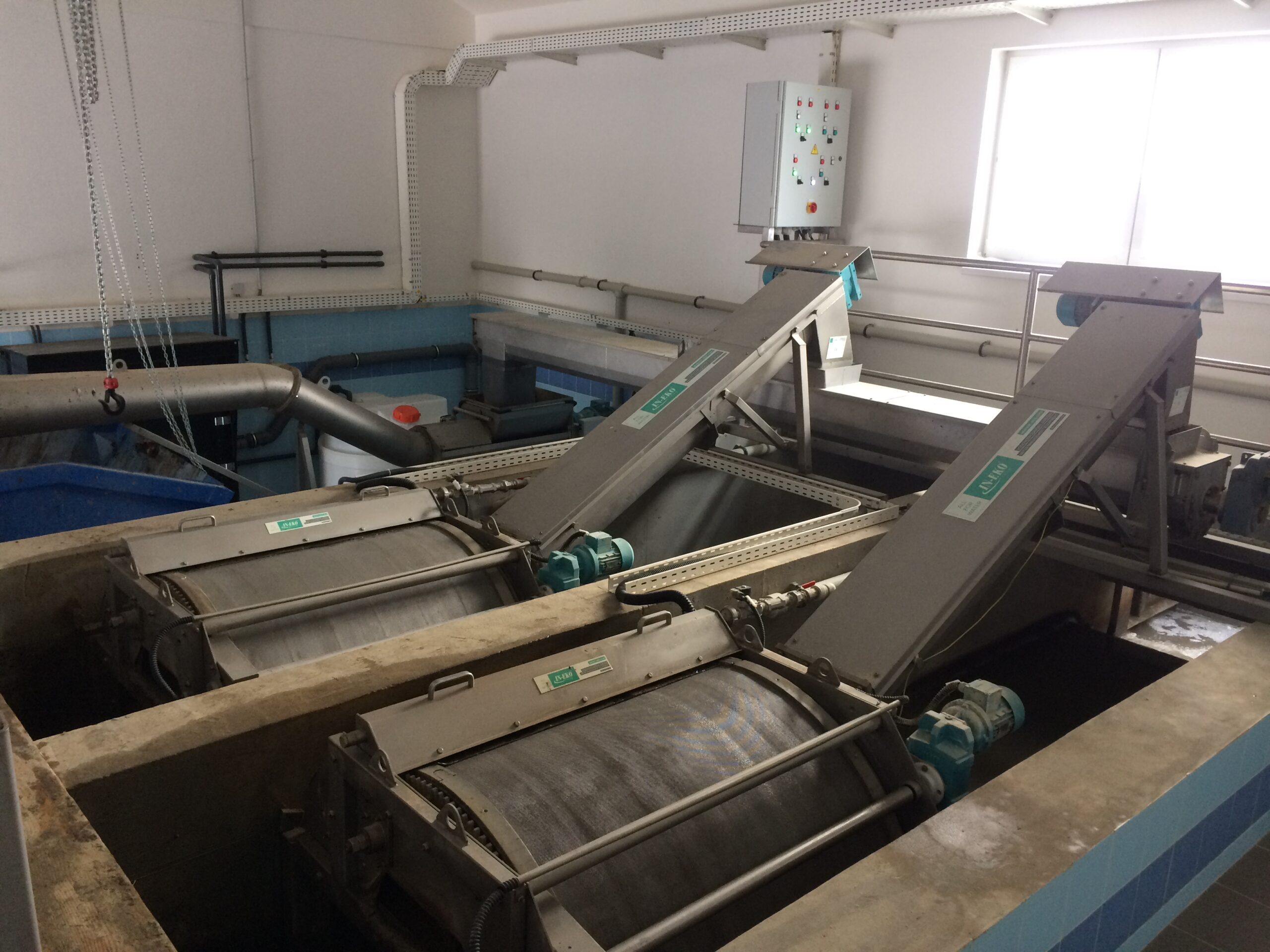

Photos from apps
Filtration
durable stainless steel screen
Design
stainless steel AISI 304 / 316 or higher
Control
level probe + PLC, SCADA connection, timer
Installation
concrete channel / steel or plastic tank
Drum Screw filter for municipal and industrial applications
- Municipal wastewater treatment plants – wherever very fine pre-treatment or removal of hair and fibers is required. Mainly upstream of MBR.
- Industrial operations – applications requiring very fine pre-treatment of substances which, due to their nature, cannot be pumped and require subsequent transport by screw conveyor. The unit can be used in the petrochemical industry, food industry, animal production, zoos, and others.
Benefits of IN-EKO TEAM solutions
- high pre-treatment efficiency
- low operating costs
- transport of screenings from greater depths
- full operation automation
- easy and fast installation
- reliable operation
- long equipment service life thanks to the overall design solution and use of high-quality materials
- remote monitoring – Industry 4.0
Optional modifications
- dewatering and compaction

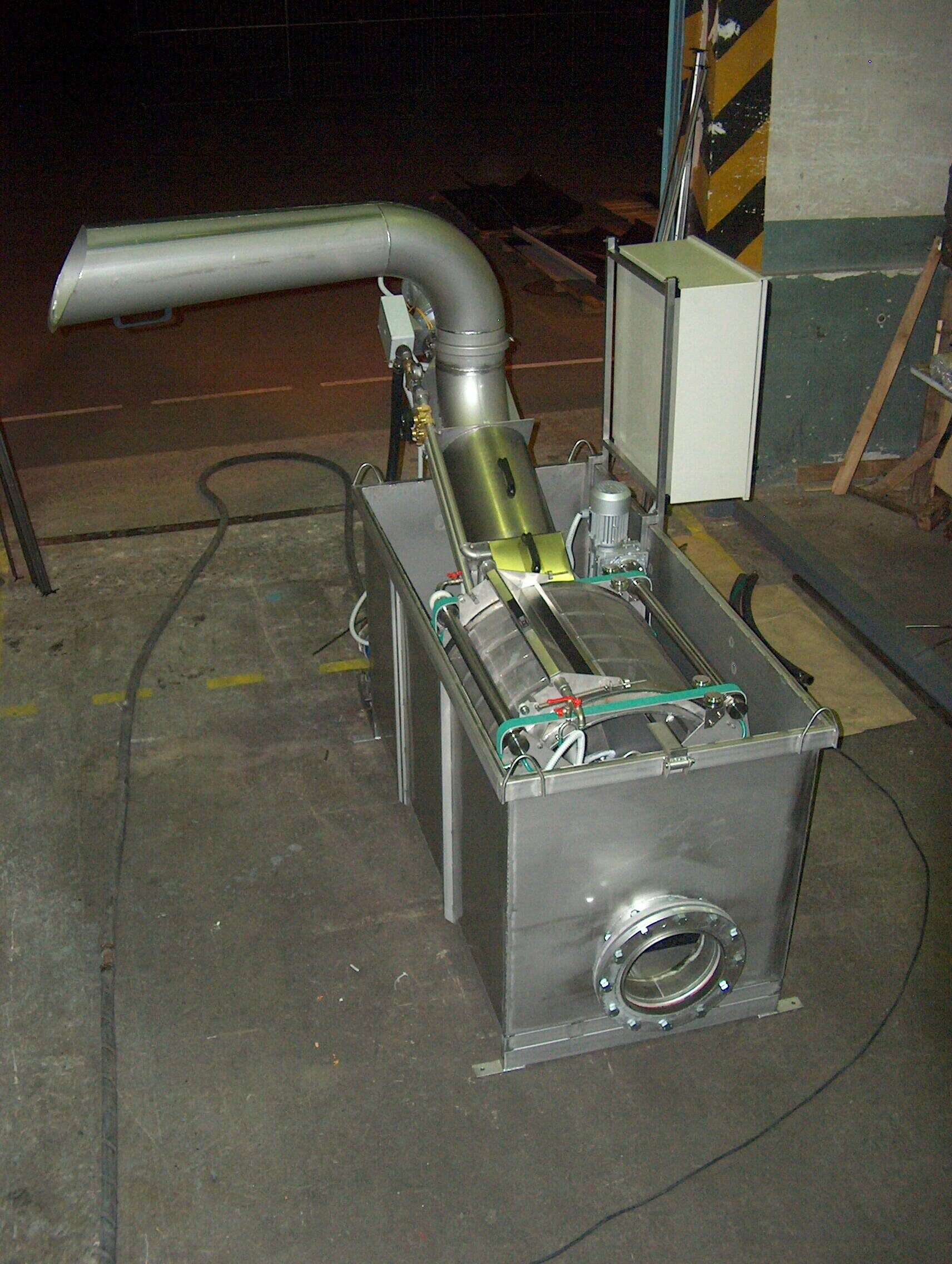

- installation in steel or plastic tank
- insulation and heating
Smarter operation through innovation
In cooperation with partners, we develop solutions that reduce environmental impact – from energy-efficient components to digitalized operation and remote equipment monitoring.
Sustainability as a foundation
From design to operation, our technologies are created to save resources, energy, and space. This is not a trend – sustainability is a natural part of every piece of equipment we develop.
Our goal is to ensure clean water for future generations.
Technology hub
Why IN-EKO TEAM?
IN-EKO TEAM is a Czech technology company with its own development and research department as well as its own manufacturing facilities. We design, manufacture, and supply top-class wastewater treatment equipment – from municipal wastewater treatment plants and industrial operations to aquaculture.
Our equipment is made of high-quality stainless steel and installed in more than 80 countries worldwide. Thanks to our long-term know-how, patented solutions, and precise workmanship, we offer our partners the reliability of efficient equipment with a long service life, together with after-sales service and commercial support.
We are your partner from the initial design through commissioning to subsequent service inspections.
O násHow does the Drum Screw filter work?

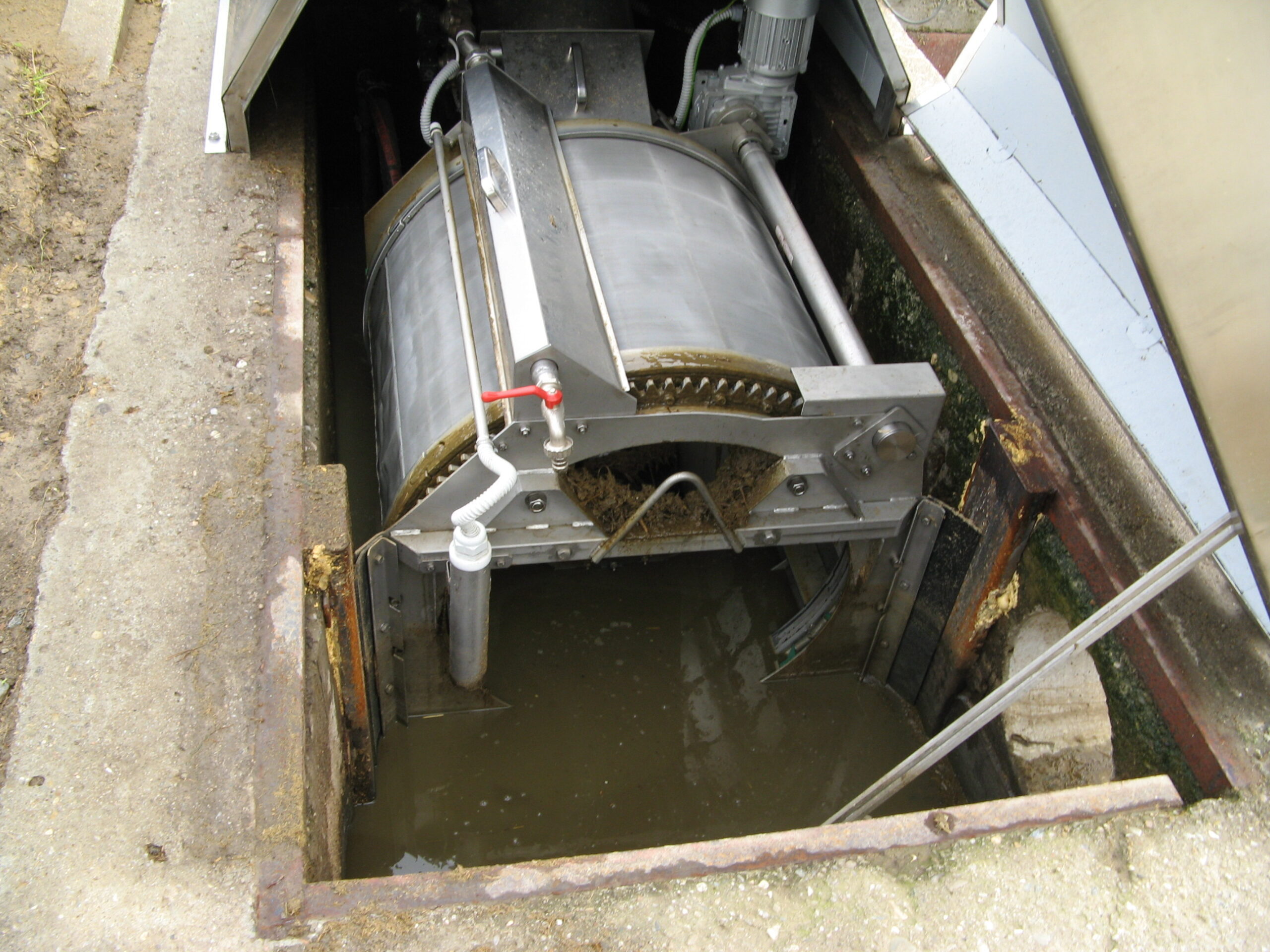

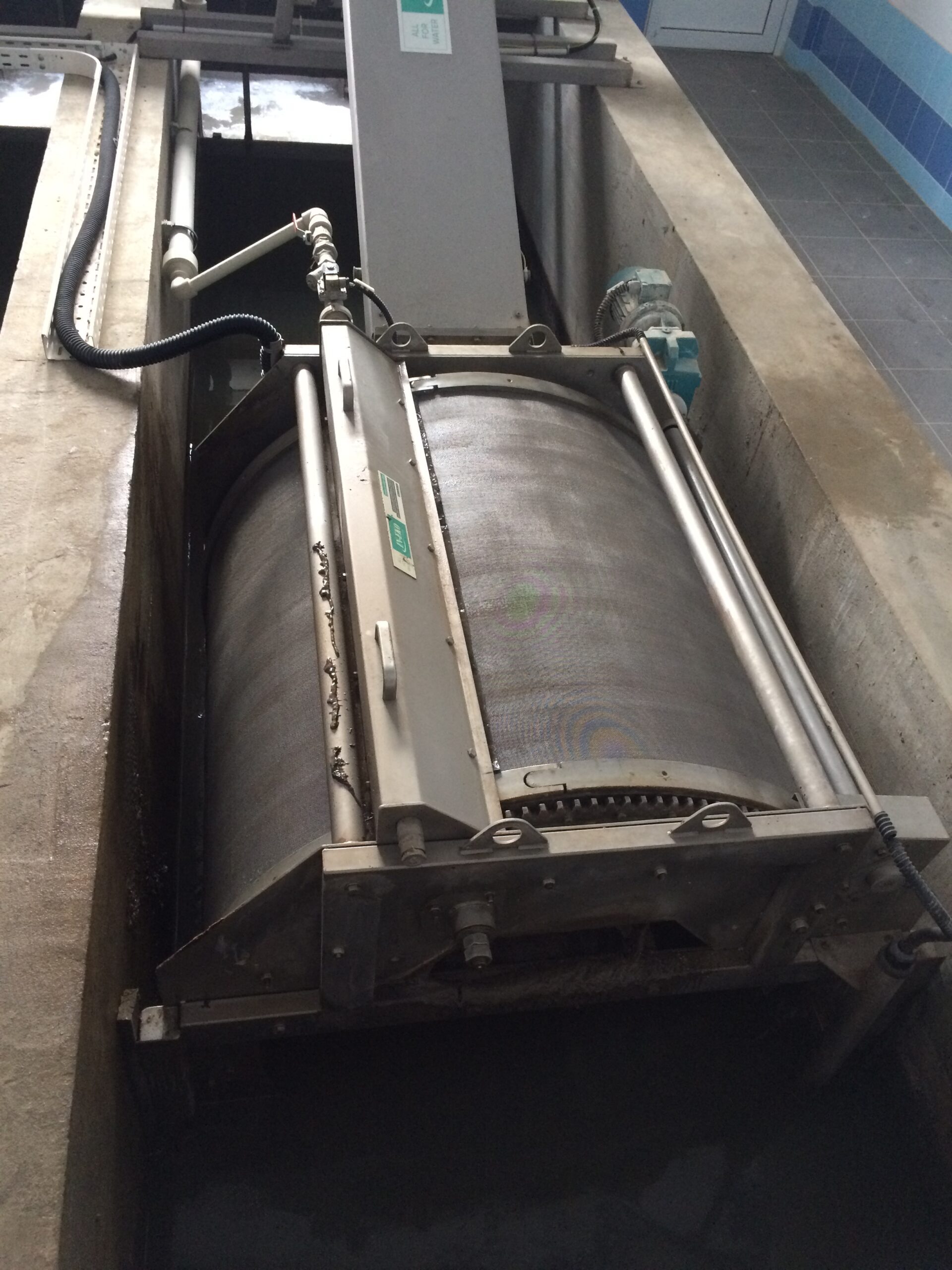

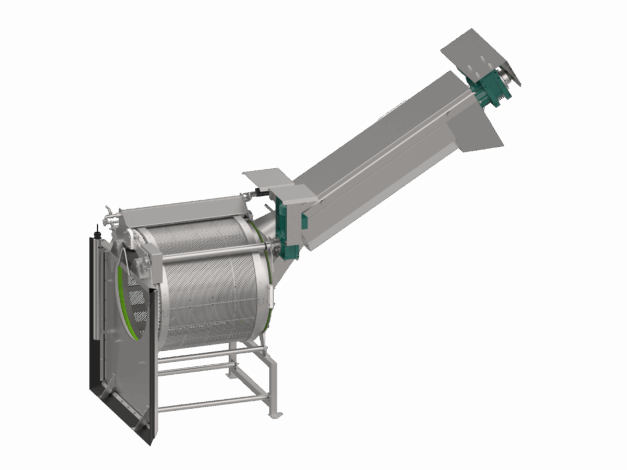

The basic filtration element is a rotating drum with a horizontal rotation axis. Polluted water flows into the drum from the front side and passes through the screen on the drum circumference. The Drum Screw filter captures on the screen the impurities flowing with the wastewater into the treatment plant. As impurities are captured, the water level in front of the filter gradually rises. The filter monitors the water level and when a certain height is reached, the cleaning and transport process for impurities starts. During this process, the drum with the filter screen rotates and is sprayed with water, which directs the impurities into a trough inside the drum. A screw conveyor is placed in the trough and transports the impurities to the discharge chute. After the cleaning process ends, the water level in front of the filter returns to the lowest level.
