How we used existing tanks and Microscreen Drum filters to modernize the Rakovník WWTP and meet stricter effluent limits
Reduction of production costs Removal of suspended solids Compliance with new, stricter effluent discharge limits Removal of suspended solids – tertiary treatment BOD and COD reduction Ensuring the proper functionality of other systems for intensive phosphorus removal and quaternary treatment Reduction of OPEX
Type
Microscreen Drum filter, 5FBB
Quantity
2 pcs
Qmax
80 l/s per filter
Filter cloth
60 μm, PES
TSS inlet
30 mg/l
Purpose of use
tertiary filtration at municipal WWTP

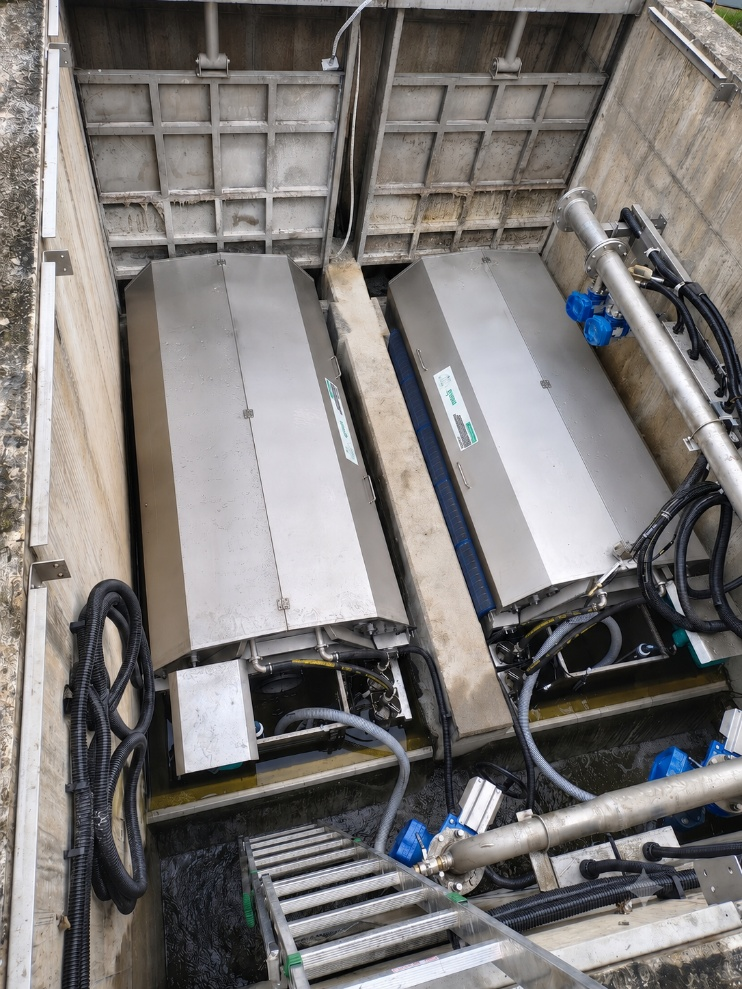

As part of the modernization and increase in efficiency of the wastewater treatment plant in Rakovník, IN-EKO TEAM Microscreen Drum filters were newly installed at this large WWTP, using the existing tanks. The technology focuses primarily on efficient capture and removal of total suspended solids (TSS).
Type: 5FBB
Quantity: 2 pcs
Qmax: 80 l/s per filter
Filter cloth: 60 μm, PES
TSS inlet: 30 mg/l
Purpose of use: tertiary filtration at municipal WWTP
Location: WWTP Rakovník, Czech Republic
Solution / Benefit
After more than seventeen years of operation, the filtration technology at Rakovník WWTP underwent a significant upgrade. The original 10_BMF_20_B2 filters, commissioned in 2007, were replaced with new, larger 5FBB Microscreen Drum filters with a common control panel. Together with the operator, we planned the entire project so the filters could be installed in the original tanks with only minimal modifications. The modernization has increased the capacity of the WWTP tertiary stage, improved operating comfort, reduced maintenance requirements, and prepared the plant for long-term reliable operation in line with current wastewater treatment requirements.
