WWTP Civitavecchia, Italy – influent 73 mg/l TSS, effluent 6 mg/l TSS
Reduction of operating costs Removal of suspended solids Phosphorus reduction (down to 0.1 mg/l) BOD and COD reduction Removal of suspended solids – tertiary polishing Compliance with new, stricter effluent discharge limits
Equipment
Pile Cloth filter "ORSO"
Type
20FCi2_B
Filter cloth
10 μm
Qmax
504 m3/h
Number of units
2
Year of commissioning
2024

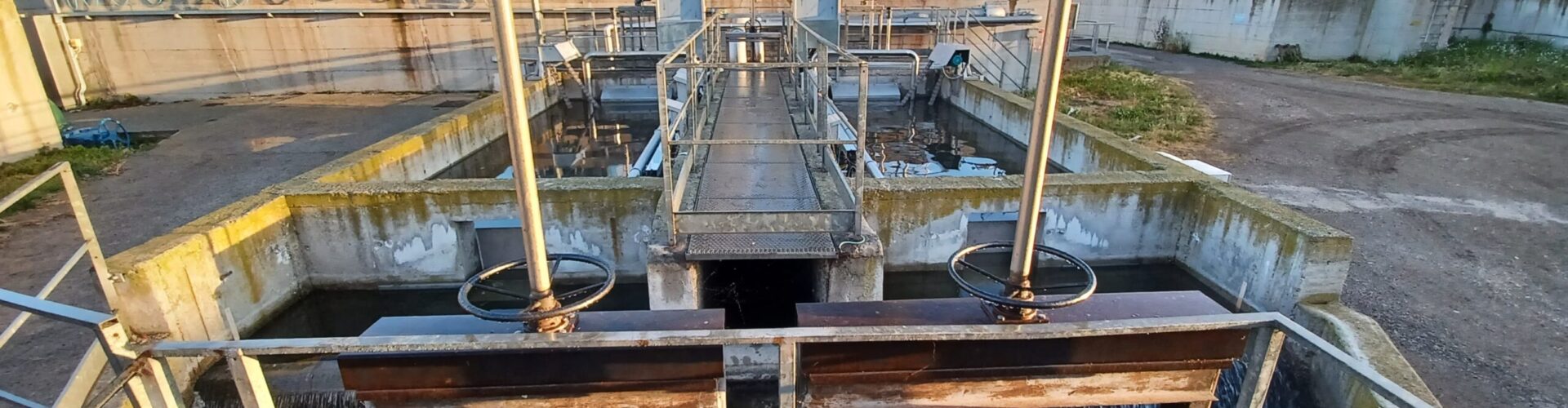

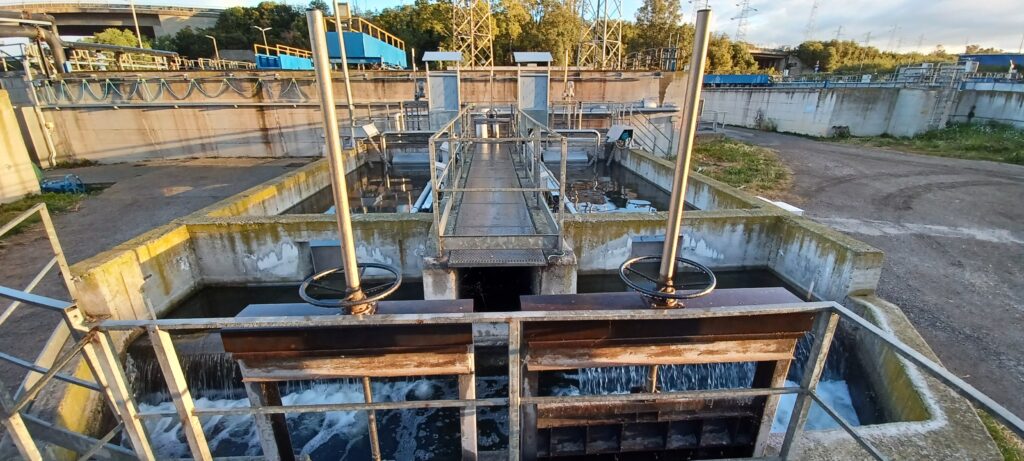

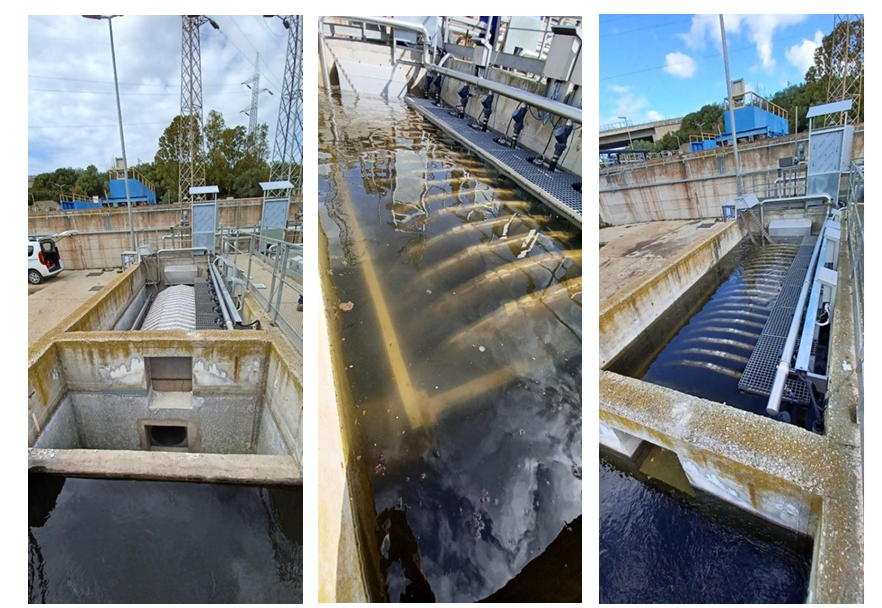

Civitavecchia is an Italian town with approximately 60,000 inhabitants in the metropolitan area of Rome. For this project, 2 pcs of Pile Cloth filter “ORSO”, type 20FCi2_B, were manufactured, delivered, and installed.
The WWTP section, consisting mainly of denitrification, sedimentation, oxidation, and nitrification,
was supplemented with filtration using pile cloth filters.
IN-EKO TEAM was selected as the technology supplier for the best filtration efficiency and the best flexibility with regard to TSS imbalance at the outlet.
We guarantee the largest filtration area of equipment on the market. For this specific application, filters with 20 discs were chosen (due to limited space), while the filtration area of each disc is 6 sqm (competitors offer only 5 sqm).
Type: 20FCi2_B
Quantity: 2 pcs
Qmax: 540 m3/h each filter
TSS at influent: 73 mg/l
TSS at effluent: 6 mg/l
Filter cloth: 10 μm, PES
Material: stainless steel AISI 304
Purpose of use: tertiary treatment stage of a municipal WWTP
Location: WWTP Civitavecchia, Italy
