Microscreen Drum filters as the best solution for removing fine fibers from wastewater in one of the largest paper mills in Malaysia
Capture of leakages and recovery of valuable materials for return to production Reduction of operating costs Recirculation and reuse of process, cooling and stormwater Removal of suspended solids – tertiary polishing Phosphorus reduction (down to 0.1 mg/l) BOD and COD reduction Compliance with new, stricter effluent discharge limits
Microscreen Drum filters as the best solution for removing fine fibers from wastewater in one of the largest paper mills in Malaysia
Equipment
Microscreen Drum filter
Qmax
80 m3/h
Solids loading
100 mg/l
Filter cloth
20 μm, PES

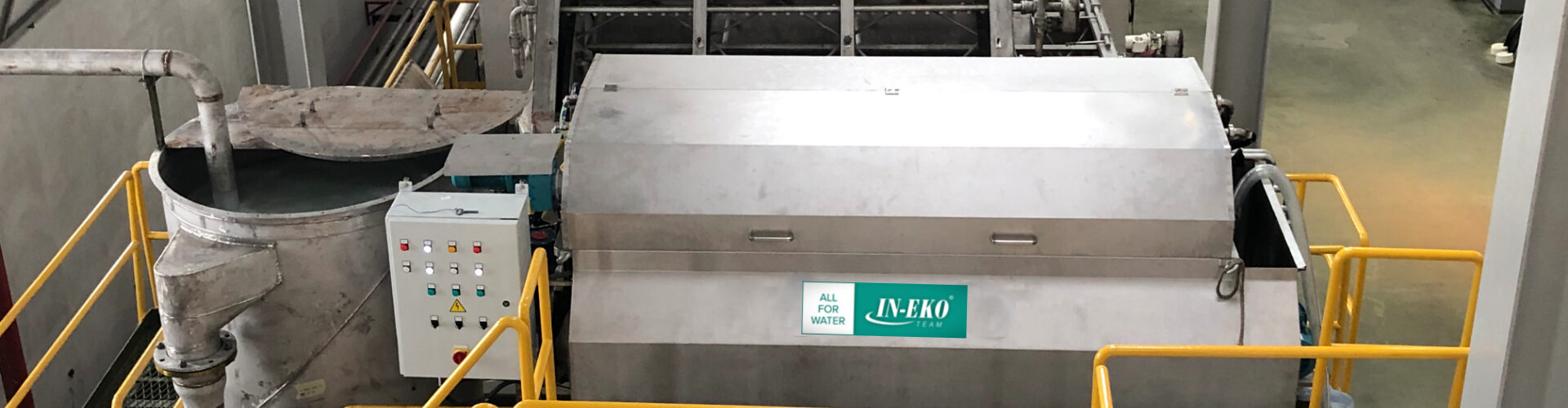

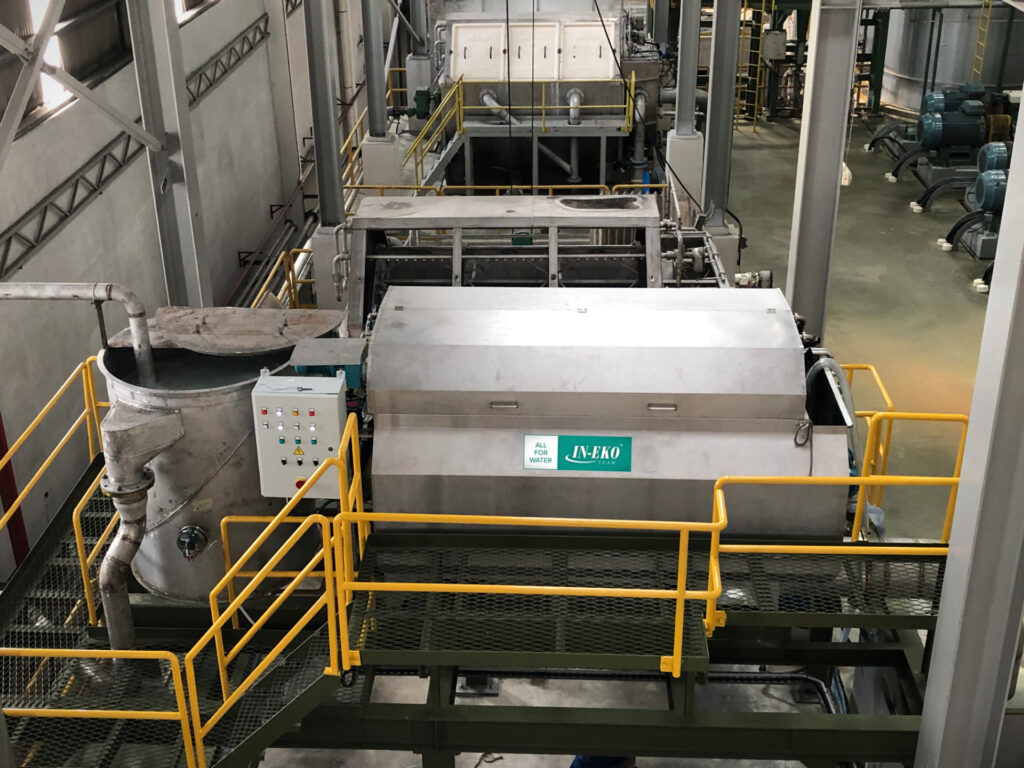

Our customer, one of the largest paper mills in Malaysia producing recyclable food-grade and packaging paper, needed a solution that would remove fine fibers from wastewater coming from the production process.
The company also specializes in specialty paper production. The paper mill is located on Penang Island off the northwestern coast of the Malay Peninsula.
Type: 5FBO
Quantity: 1 pc
Qmax: 80 m3/h
Filter cloth: 20 μm, PES
Solids loading: 100 mg/l
Material: stainless steel AISI 304
Function
Removal of fine fibers from wastewater coming from the production process.
Since fine paper fibers make up a significant share of impurities in wastewater in the paper industry,
reducing their amount by a high percentage also significantly reduces pollution.
After treatment, the water returns back to the process and helps the user minimize energy
consumption. The equipment is low in water consumption because it uses already treated water
from the filtration process for washing.
