Coarse pre-treatment

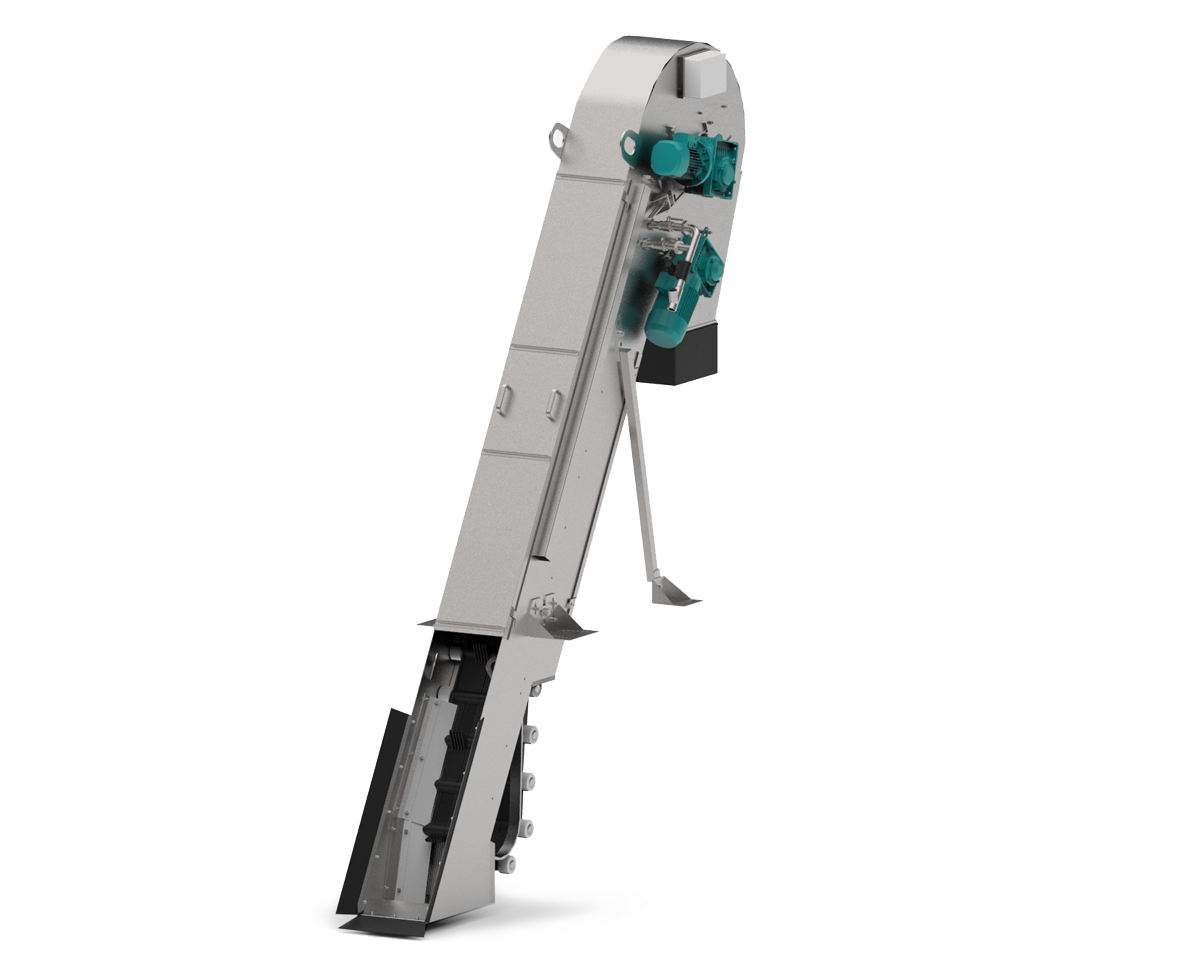

BELT SCREEN

Function:

  • belt screens are intended for coarse pre-treatment of wastewater
  • vertical transport of screenings

Advantages:

  • high pre-treatment efficiency
    transport of screenings from greater depths is possible
    removal of objects of greater dimensions
    fully automated operation in cooperation with the respective press
    greater construction tolerances are possible
    the carrying lamellas are exceptionally resistant to damage
    easy and low-cost installation
    low operational costs

Variability:

  • dimensions according to the required output
    removes solids bigger than 3 mm up to 100 mm
  • screen inclination options ( 60° or 75°)
  • warming option

Downloads:

Belt screen

VERTICAL LAMELLA SCREEN

Function:

  • vertical lamela screens are intended for pretreatment of municipal and other waste waters

Advantages:

  • suitable for installations on a small area
  • suitable for both medium and big operations with pumped influent or gravity influent
  • easy service and long lifespan
  • great filter capacity at small size: 40–2300l/s
  • automatic cleaning of filtration drum
  • high efficiency

Variability:

  • removes solids bigger than 3 mm, 6 mm, 8 mm or 10 mm
  • installation to the concrete channel or steel tank with pipe connection
  • integrated emergency overflow
  • optional integrated press
  • requires only a small area for installation

Downloads:

Vertical lamella screen

COARSE SCREEN

Function:

  • screen are intended for coarse pretreatment of municipal and other waste waters
  • suitable for both medium and big operations with pumped or gravity influent

Advantages:

  • innovative structure
  • low headloss
  • easy installation
  • requires a small area for installation
  • variability of installations
  • patented design

Variability:

  • removes solids bigger than 30 mm – 100 mm
  • channel width from 0.5 to 2 m
  • channel depth up to 6 m
  • max. height of the screen bars is 2 m

Downloads:

Coarse screen
