Multifunctional unit – MZG

A modern solution for wastewater pretreatment Pre-treatment

Multifunctional unit for flow rates of 35 – 260 l/s

The Multifunctional unit is a modern solution for wastewater pretreatment, primarily designed to remove screenings, sand and fats from incoming wastewater. This ensures protection for downstream technologies. It is a compact solution that reduces implementation costs, speeds up installation and commissioning, and improves operational hygiene standards.

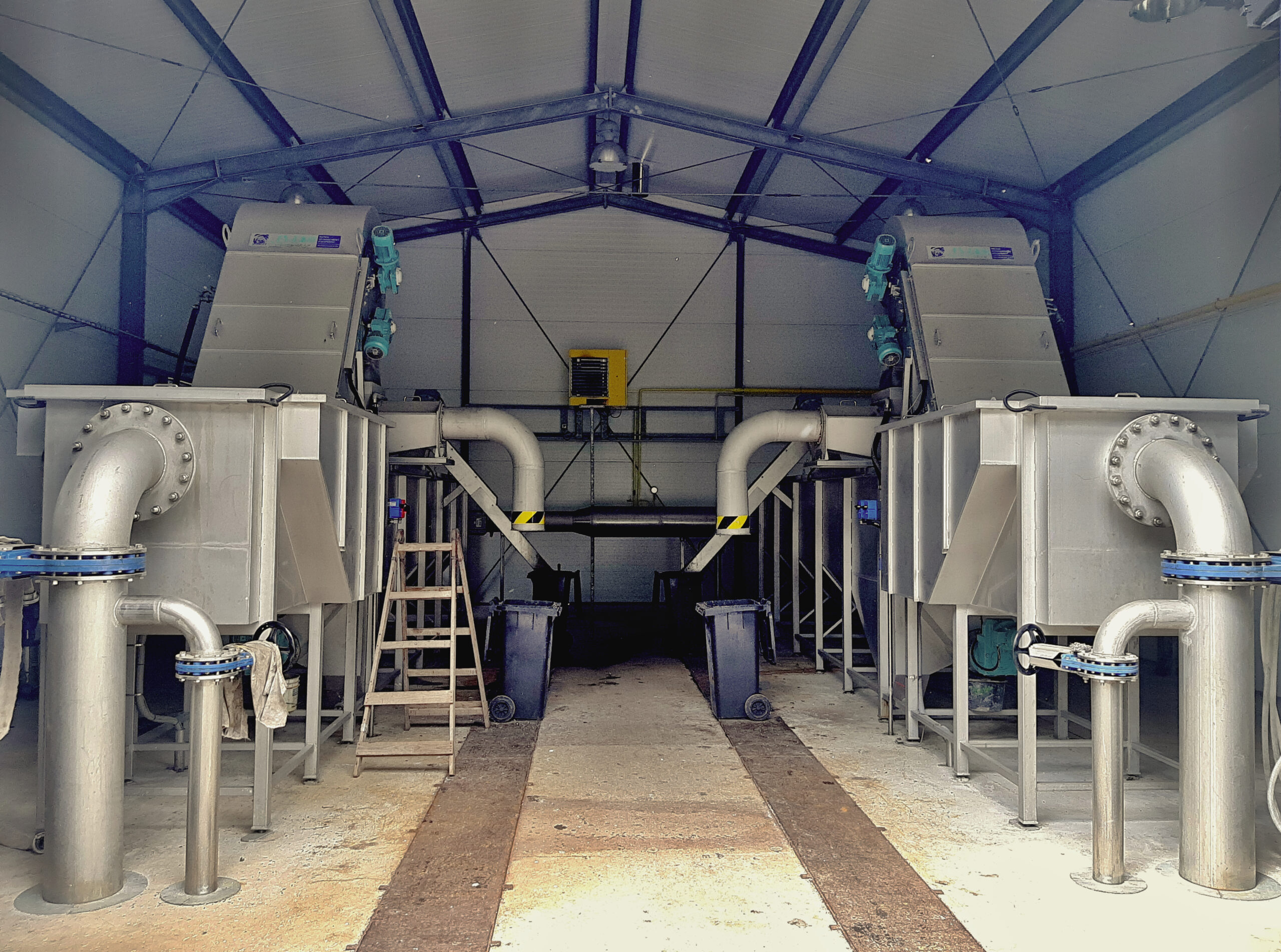

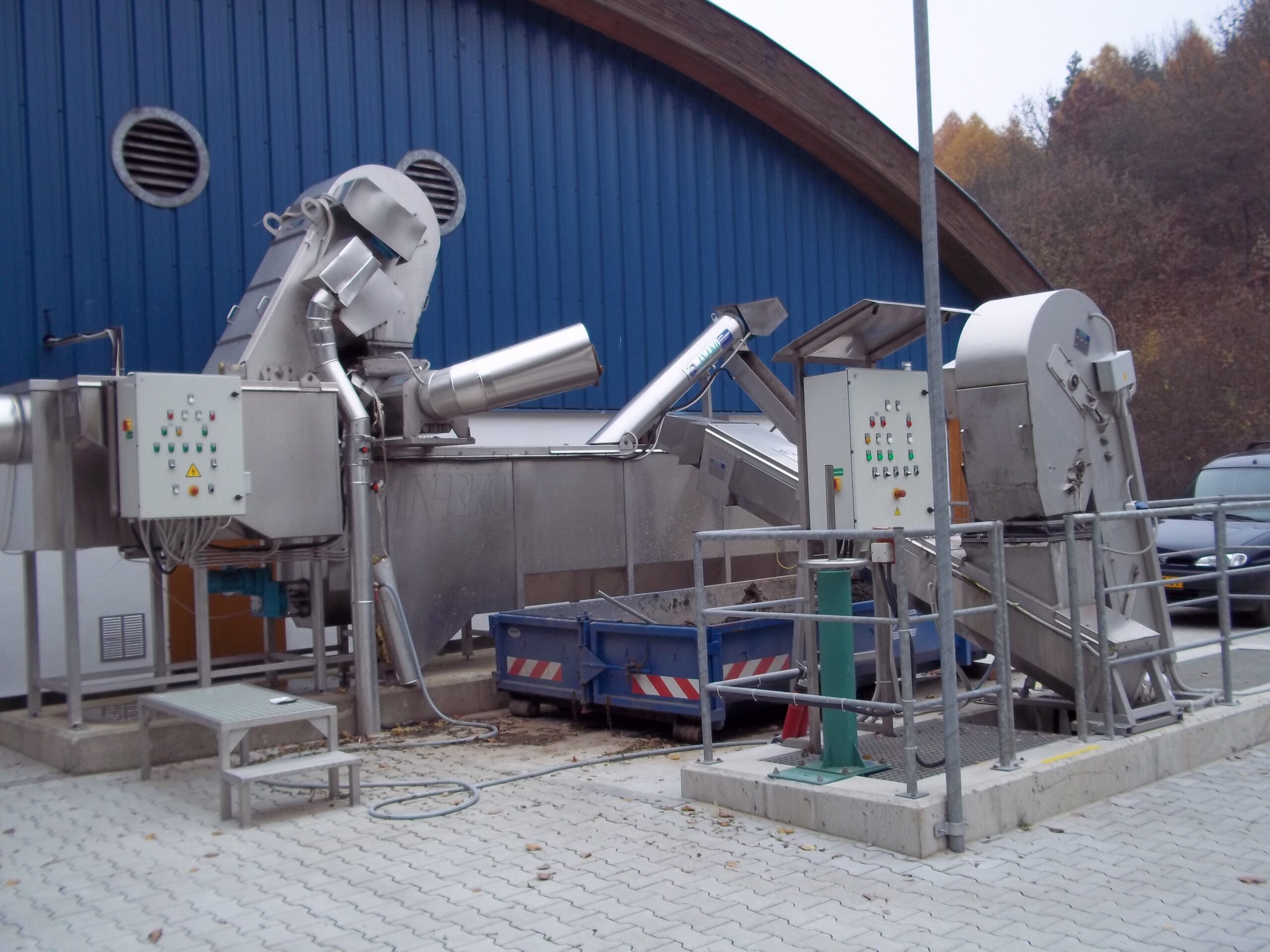

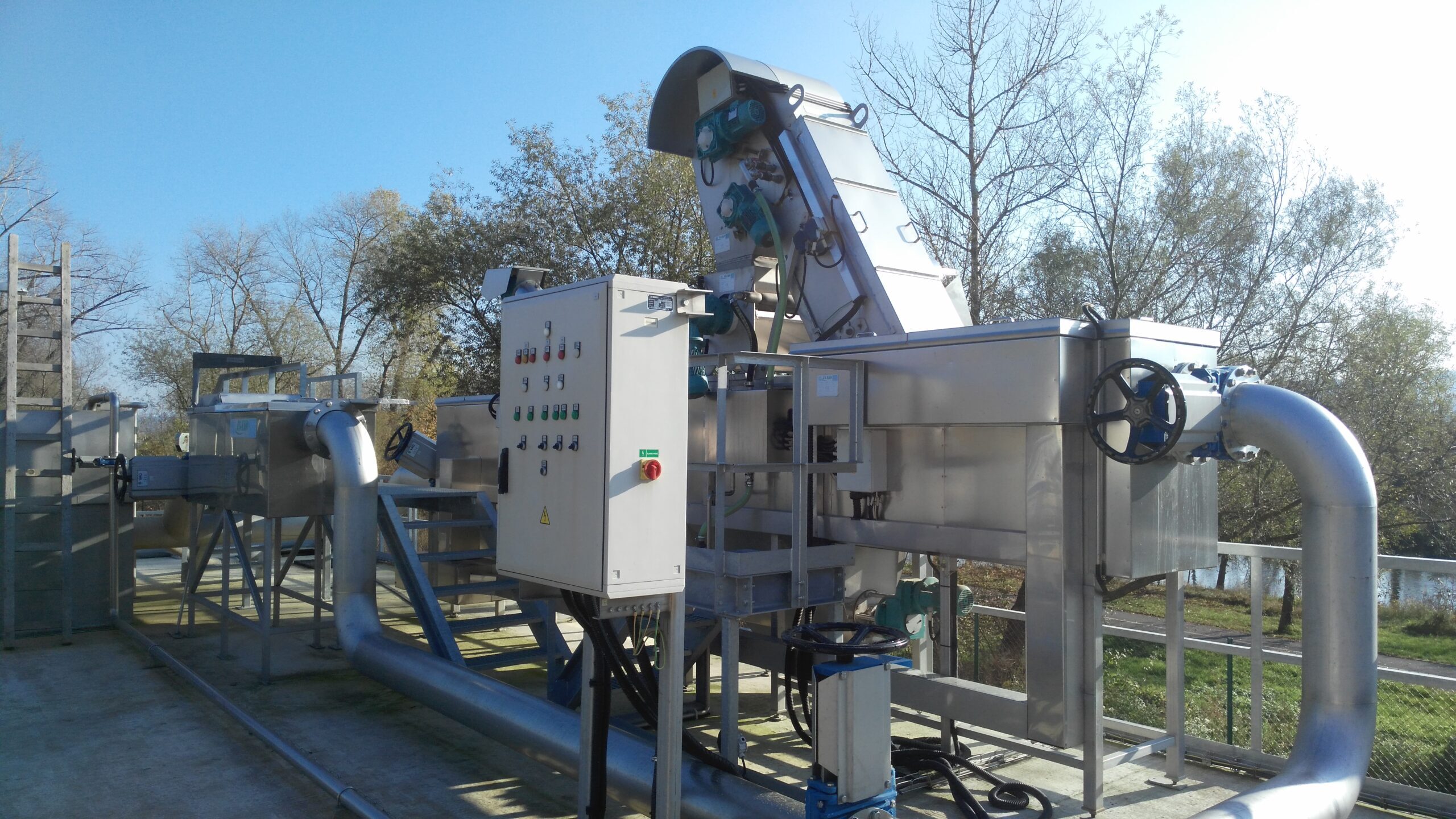

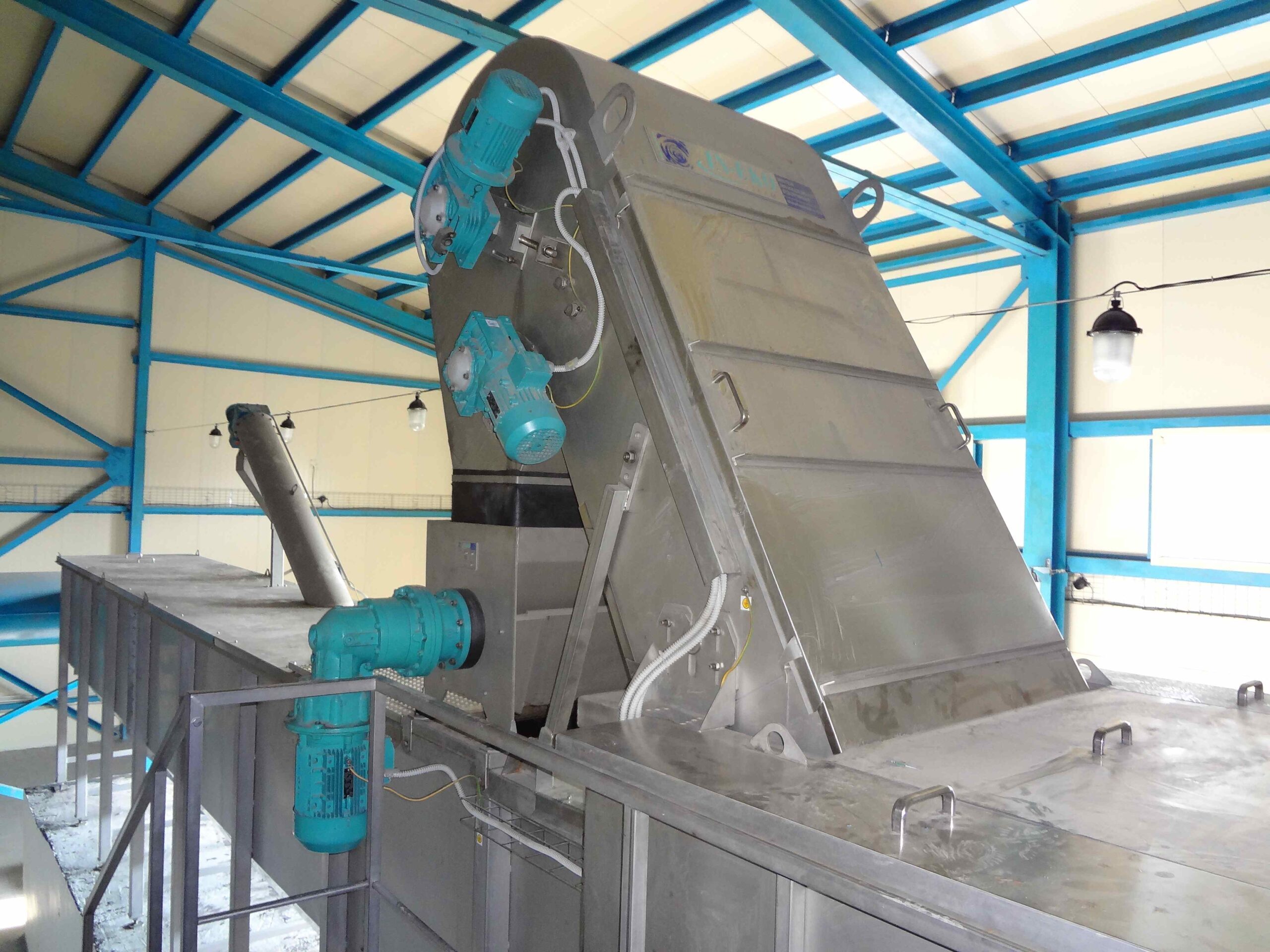

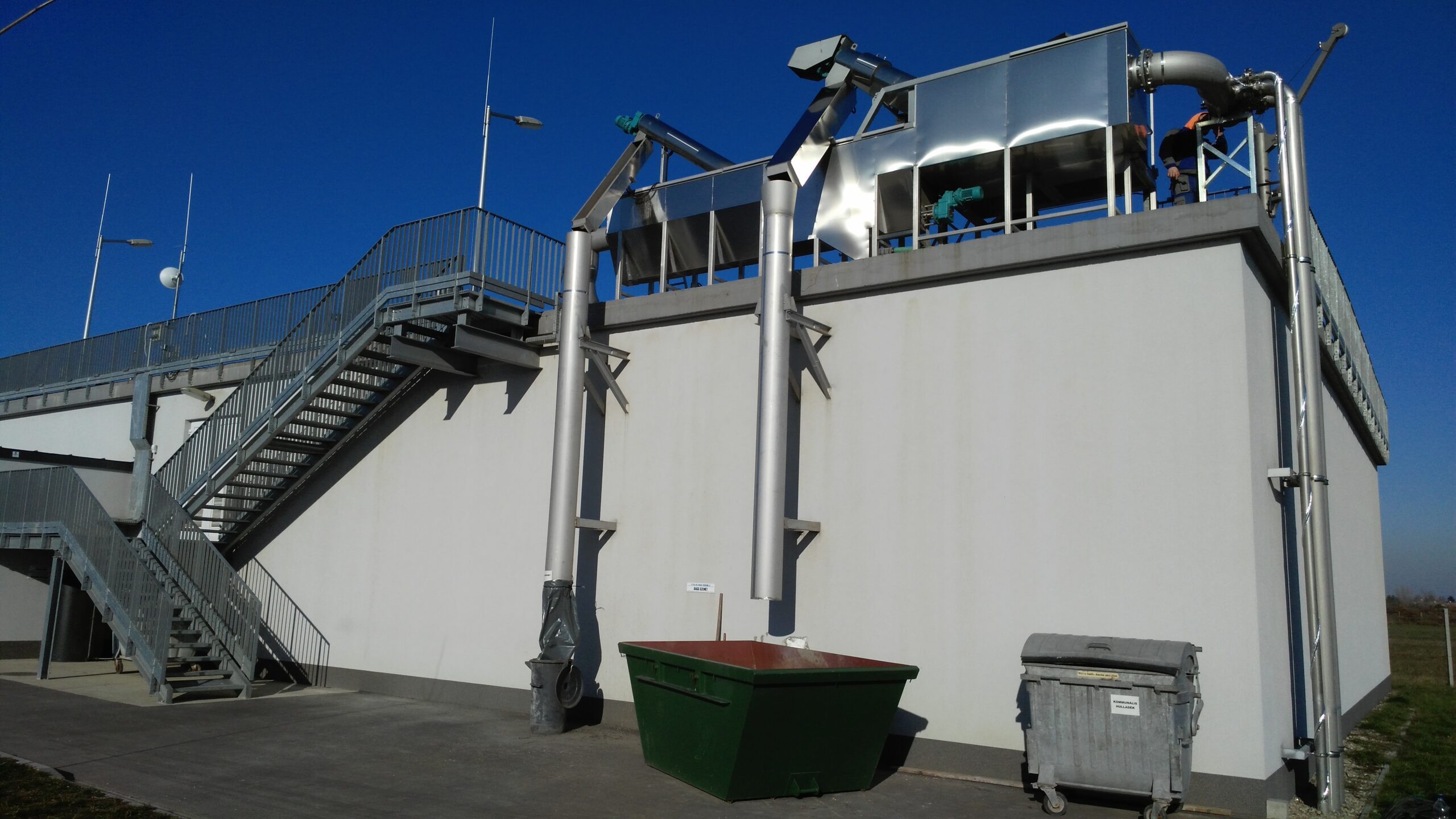

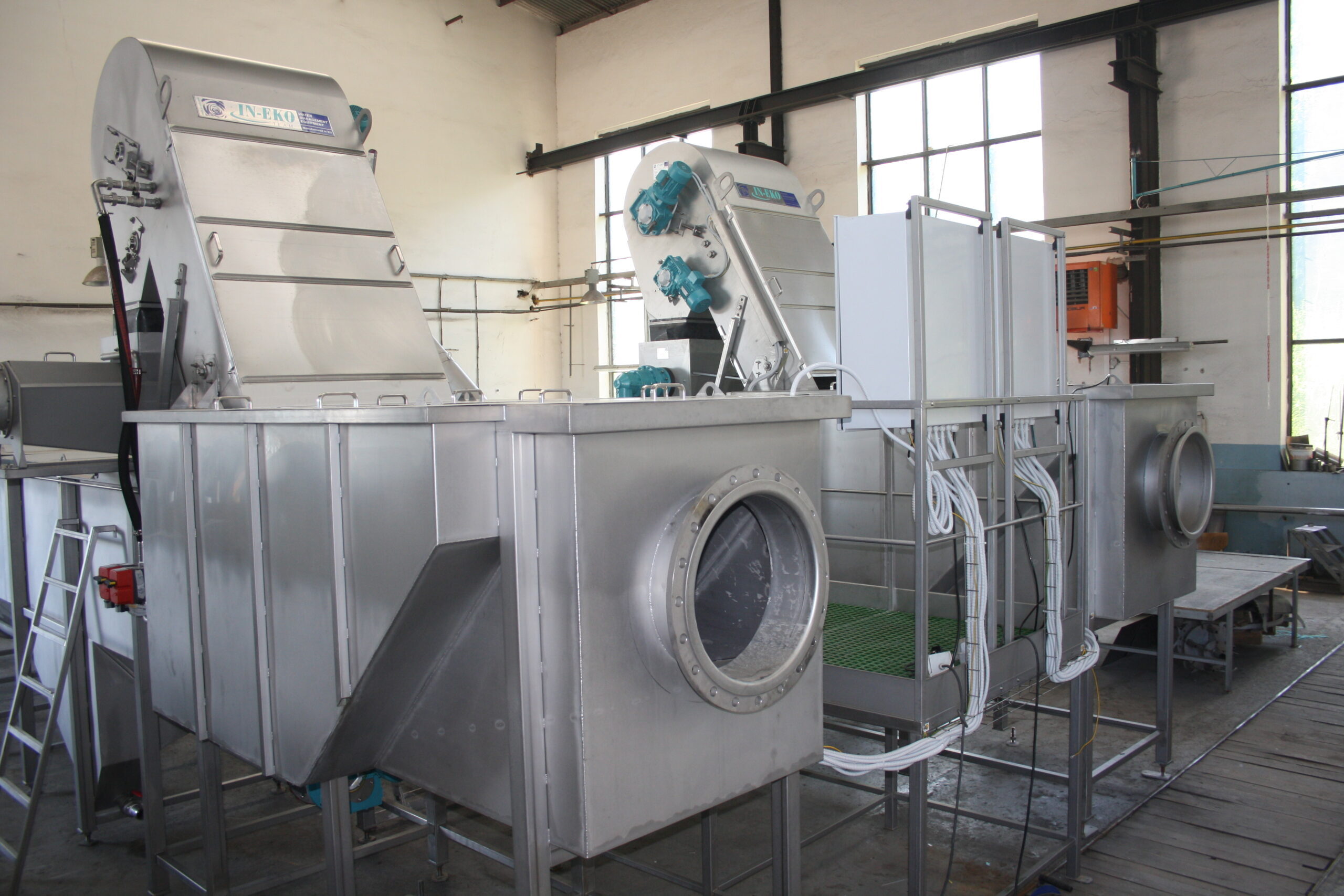

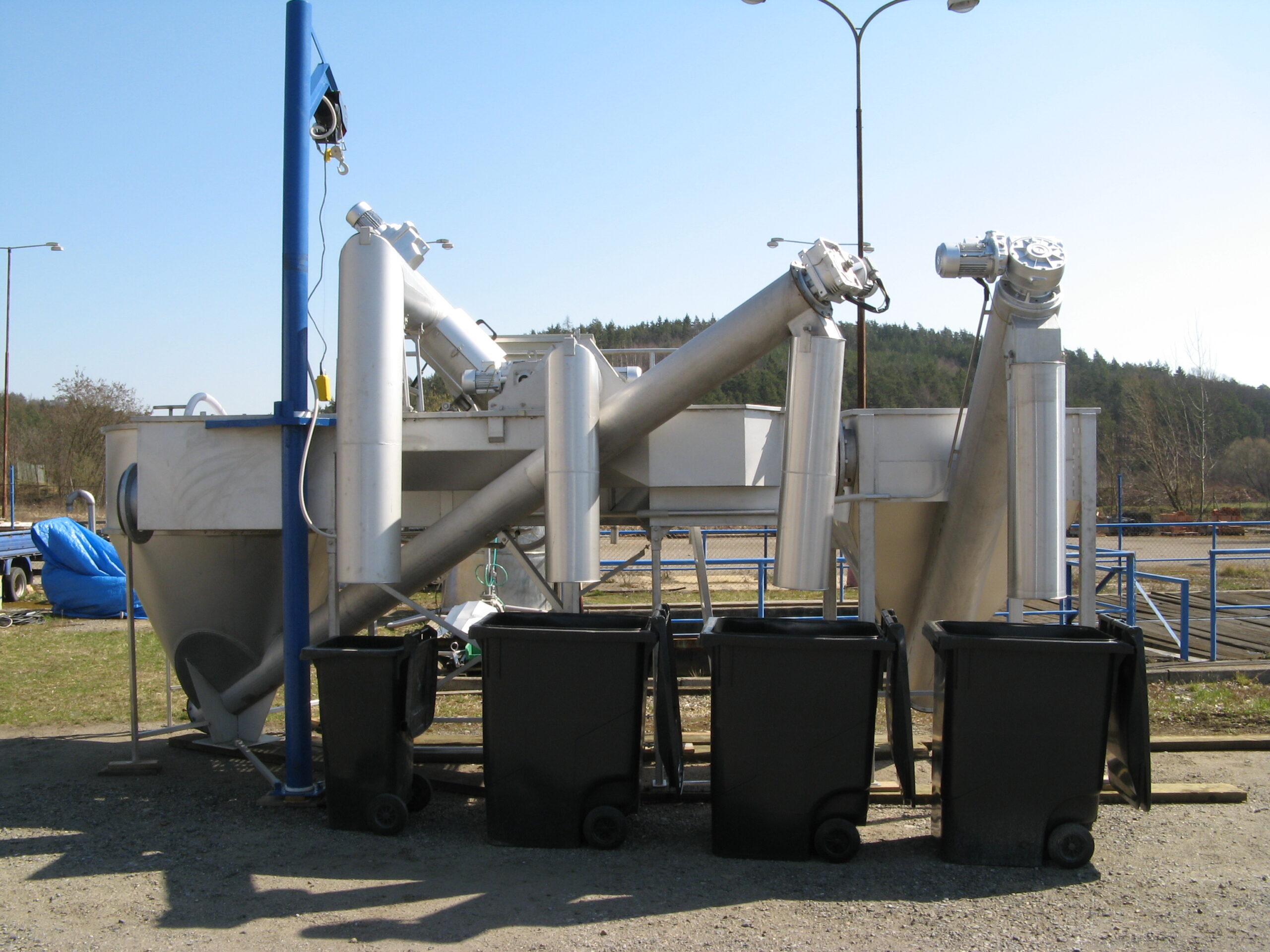

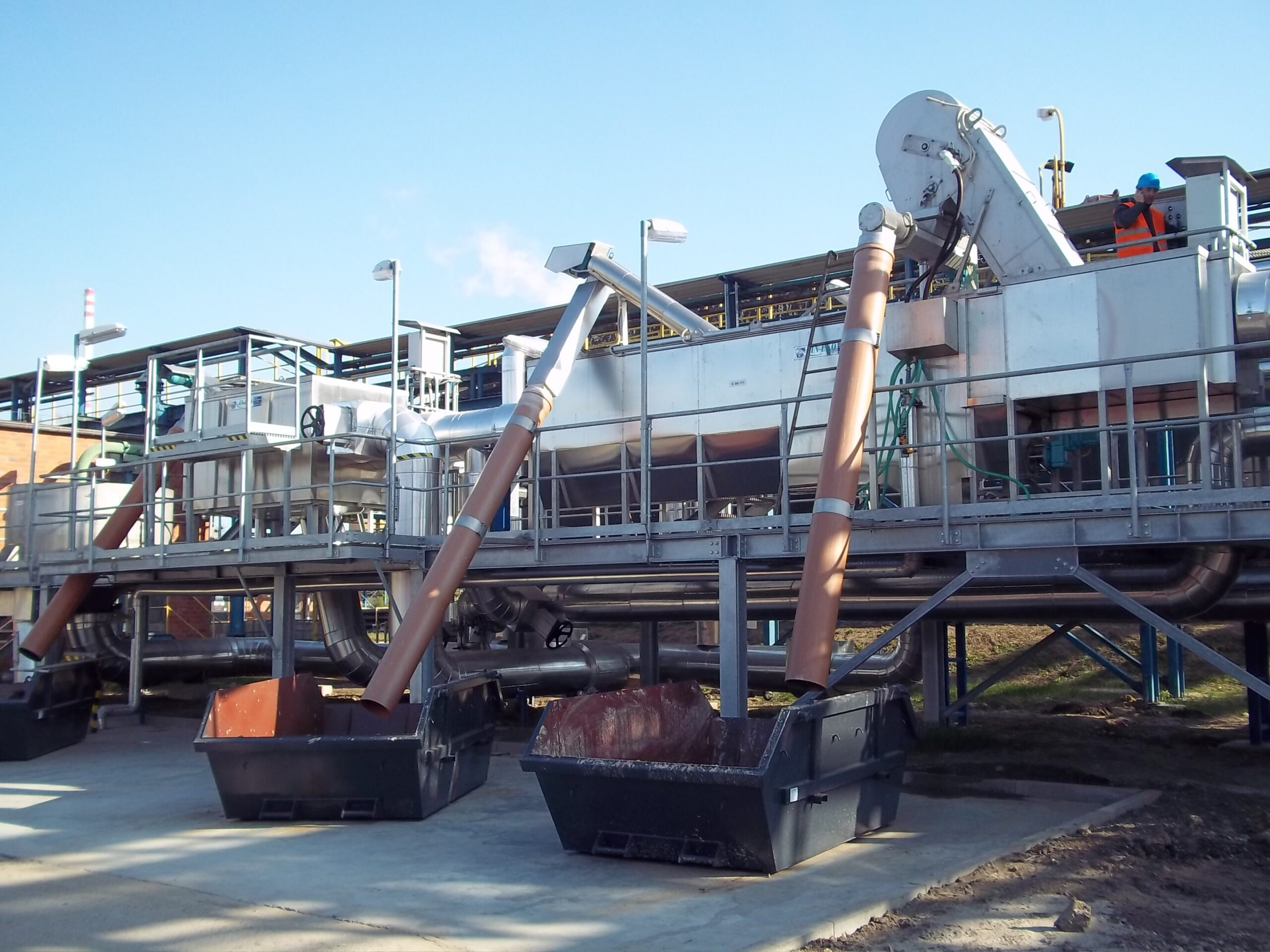

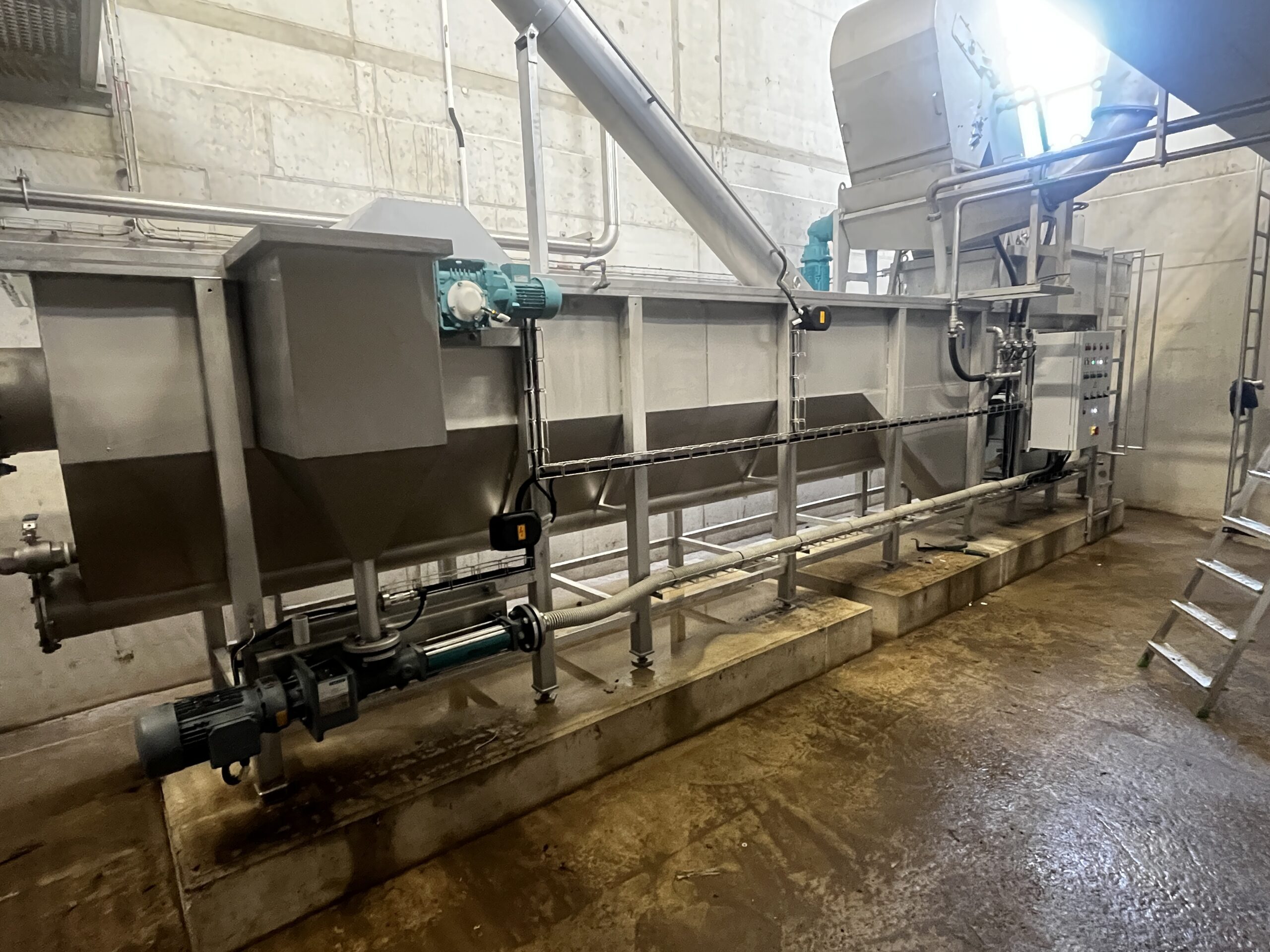

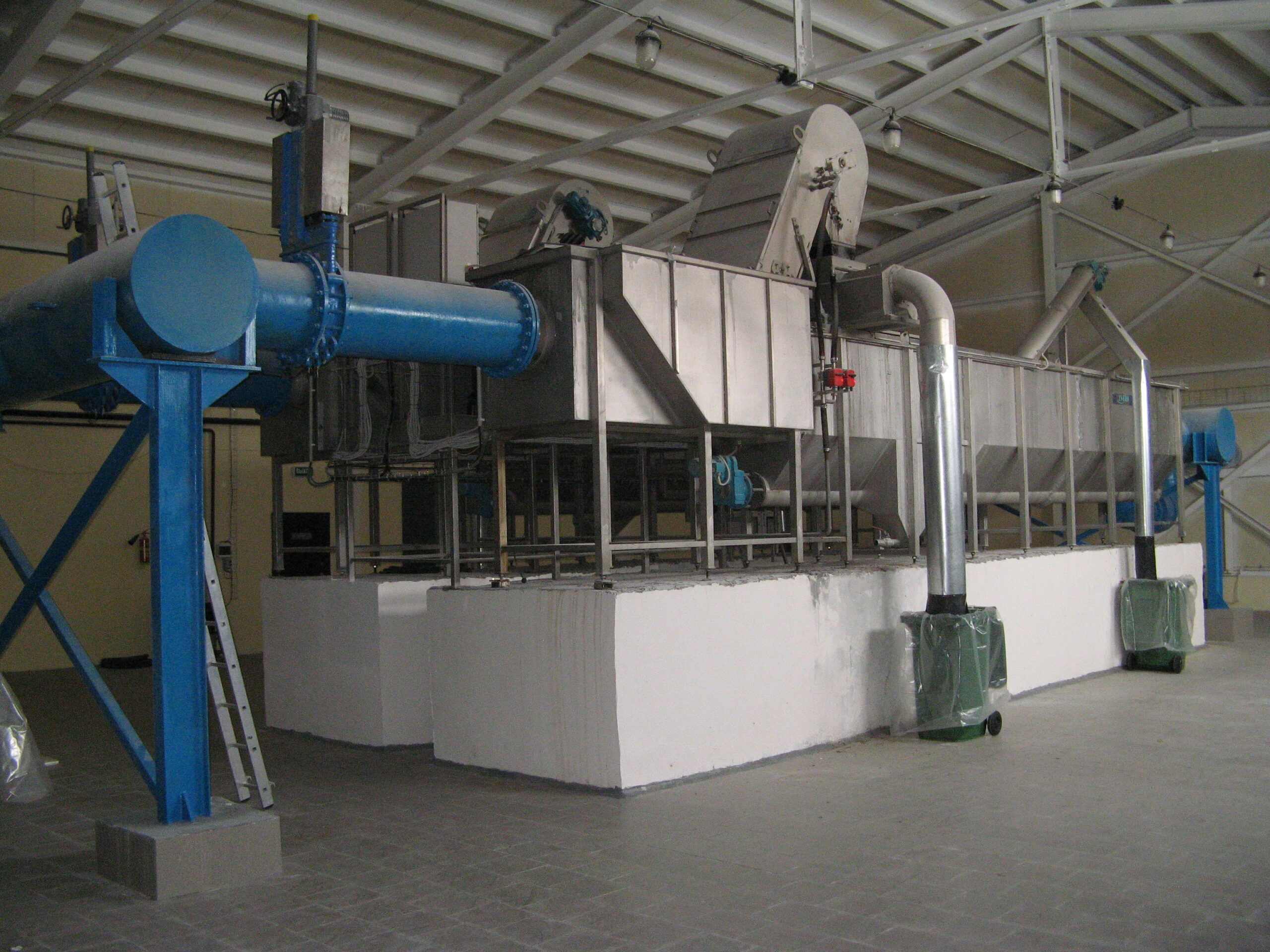

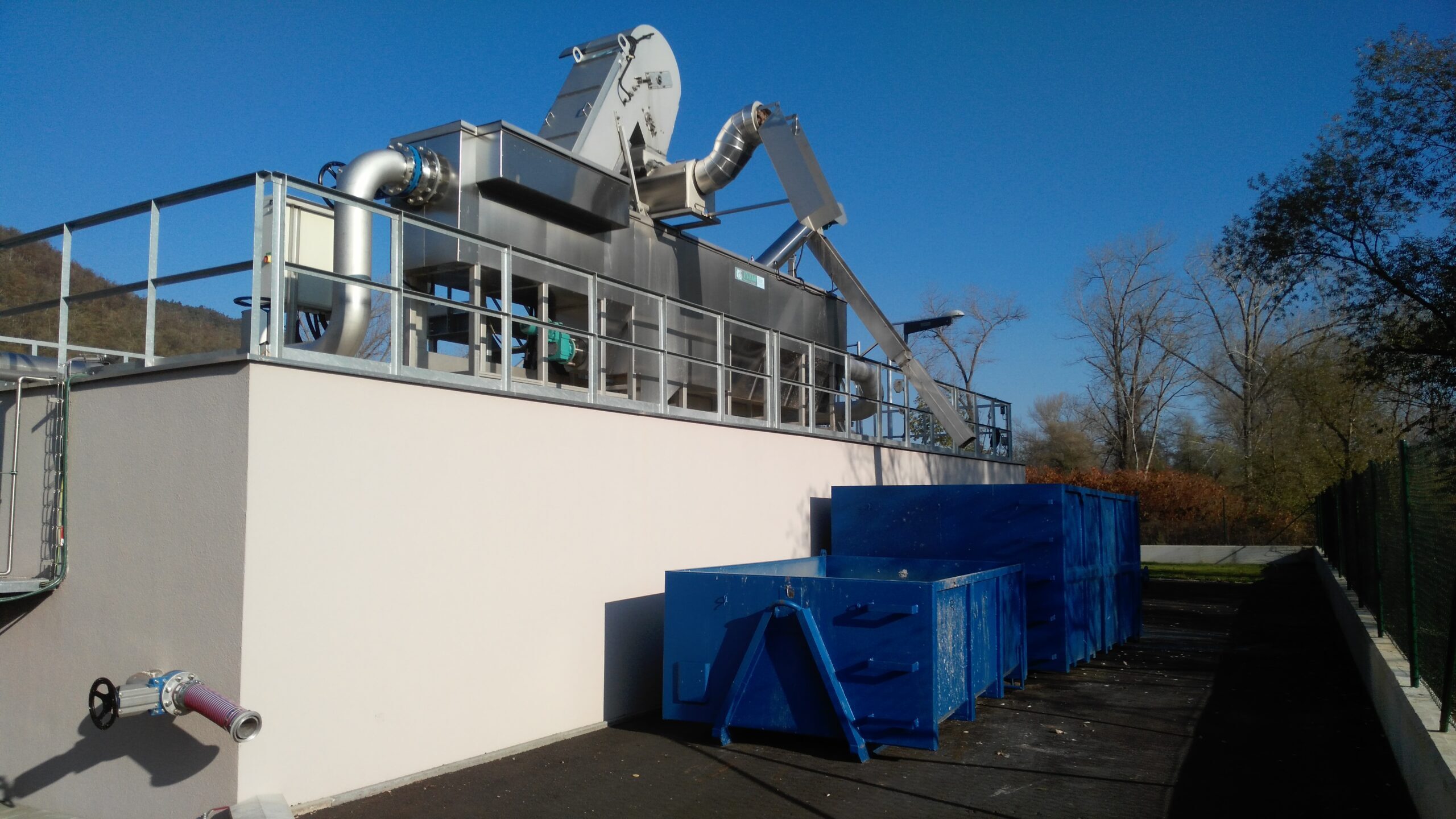

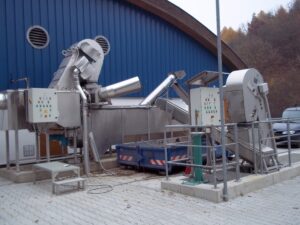

Photos from apps

Flow rate

35 - 260 l/s, depending on the unit size

Design

stainless steel AISI 304 / 316 or higher

Screen

Belt screen or Straight Screw screen

Mesh size

standard 3 or 6 mm, or fully customized

Control

level probe + PLC, SCADA connection, timer

Multifunctional unit for municipal and industrial applications

wastewater pre-treatment at WWTPs
wastewater pre-treatment from industry

Combined pretreatment consists of grit and heavy solids removal, screening, screenings compaction, and optionally grease capture and removal.

Compared with competing units, the IN-EKO TEAM Multifunctional unit is more compact and can therefore also be used in projects with limited space. This reduces implementation costs.

Aplikace

MZG_CSP

A unit using a Straight Screw screen with a perforated screen basket and integrated compactor, grit and heavy solids removal, with optional aeration and grease capture.

MZG_CP

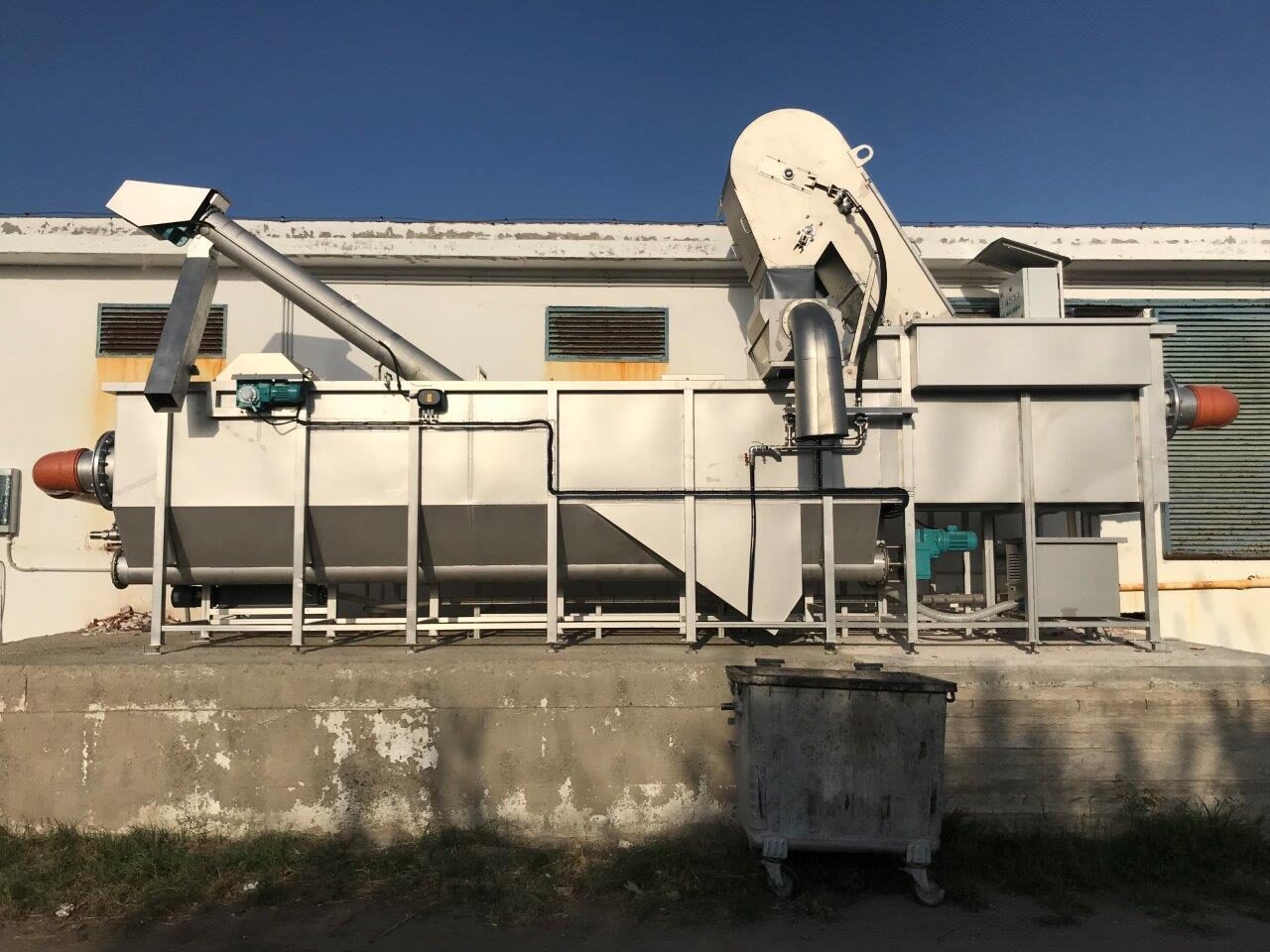

A unit using a Belt screen with a downstream screw compactor, grit and heavy solids removal, with optional aeration and grease capture.

Benefits of the IN-EKO TEAM solution

small installation footprint
integrated emergency screen bypass
integrated sand washing
high efficiency
modification options for specific projects
high operational hygiene standard
integrates various functions of a conventional mechanical treatment stage (5-in-1)
option for pumped or gravity inflow
aeration with grease capture
remote monitoring – Industry 4.0

Basic functions

sediment capture (sand, grit)
capture of impurities on the screens
transport of captured material to a container
integrated bypass

Variability

At the inlet of the Multifunctional unit, a Straight Screw screen can be used for flow rates up to 90 l/s. For higher flow rates, a Belt screen is used as standard.

Optional modifications

screenings washing
screenings pressing
sand washing
grease capture and transport
insulation and heating

Smarter operation through innovation

In cooperation with our partners, we develop solutions that reduce environmental impact – from energy-efficient components to digitalized operation and remote equipment monitoring.

Sustainability as a foundation

From design to operation, our technologies are developed to save resources, energy and space. This is not a passing trend – sustainability is a natural part of every unit we develop.

Our goal is to ensure clean water for future generations.

Technology hub

Why IN-EKO TEAM?

IN-EKO TEAM is a Czech technology company with its own development and R&D department as well as in-house manufacturing. We design, manufacture and supply top-quality equipment for wastewater treatment – from municipal wastewater treatment plants and industrial facilities to aquaculture.

Our equipment is manufactured from high-quality stainless steel and has been installed in more than 80 countries worldwide. Thanks to our long-standing know-how, patented solutions and precise workmanship, we offer our partners the confidence of efficient, long-life equipment together with follow-up service and commercial support.

We are your partner from the initial design through commissioning to subsequent service inspections.

O nás

WWTP

Industrial operations

How does the MZG Multifunctional unit work?

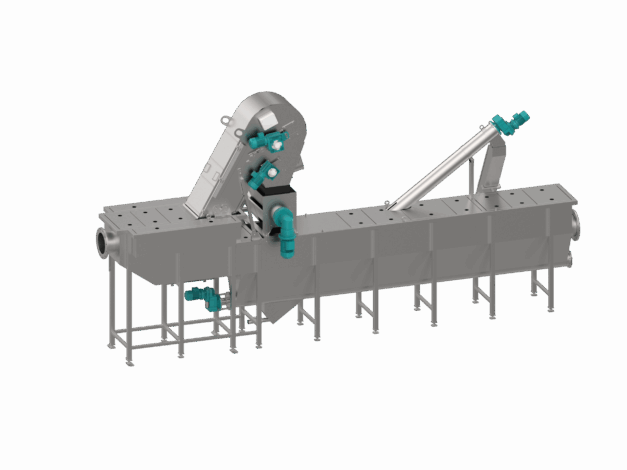

The Multifunctional unit (MZG) is a complete mechanical pretreatment solution for your application. Wastewater first flows to the fine screen, which removes screenings. It then flows into the longitudinal grit chamber area, where grit settles out. The grit is conveyed by a horizontal screw, then washed and subsequently discharged by an inclined screw conveyor. Screenings captured on the screen are dewatered and compacted in the screw / integrated compactor. The unit can optionally be equipped with aeration, which primarily serves to remove fats and at the same time improves the sedimentation of grit and heavy solids. The pretreated water then flows from the grit chamber area in the MZG to the downstream treatment technologies.
