Straight Screw screen

Reliable solution for fine wastewater pre-treatment Pre-treatment

Straight Screw Screens are designed for wastewater pre-treatment in both small and medium-sized municipal WWTPs and for industrial wastewater pre-treatment. The equipment is also used on ocean-going ships. It is a suitable choice of mechanical pre-treatment for applications using MBR.

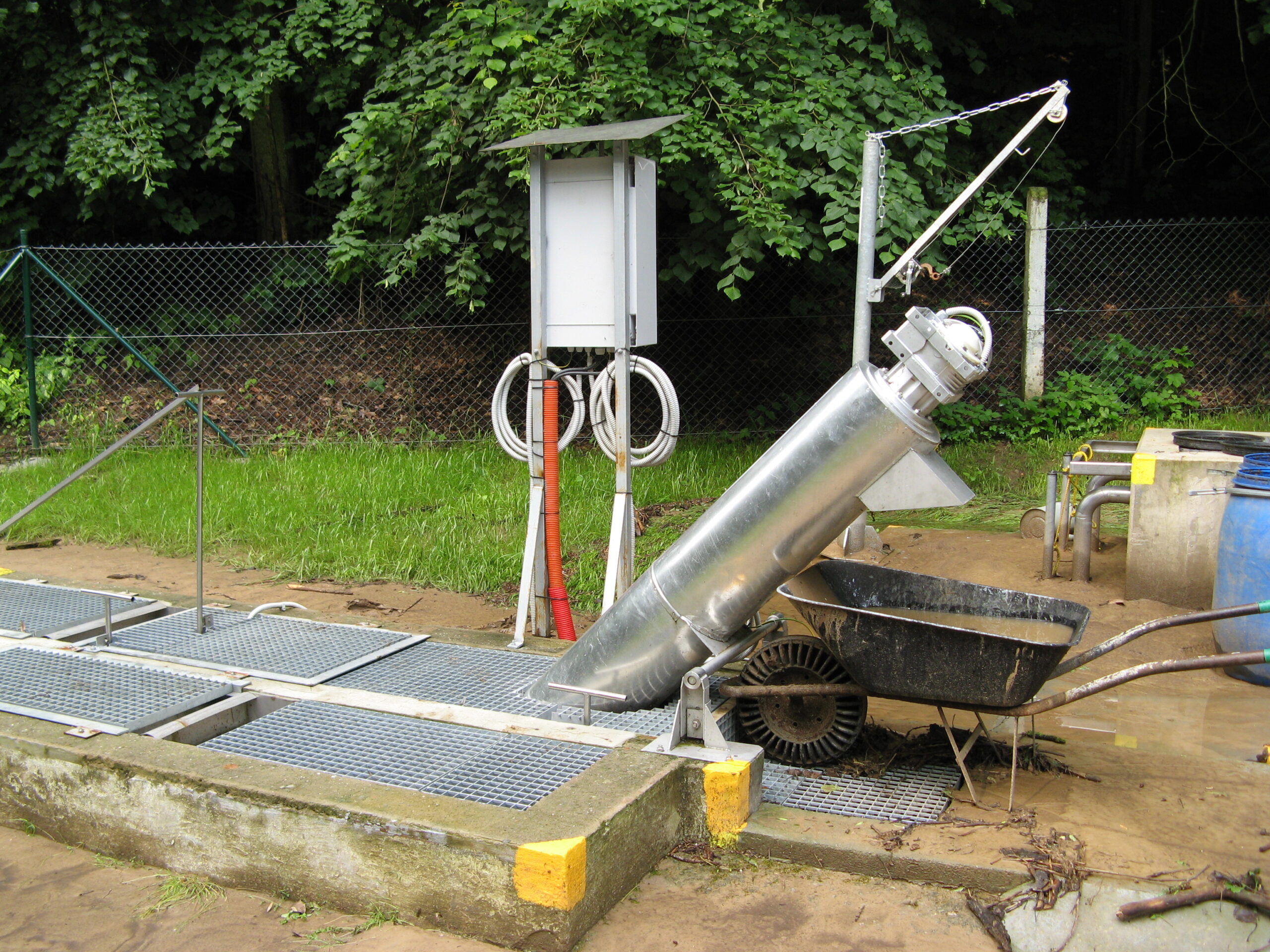

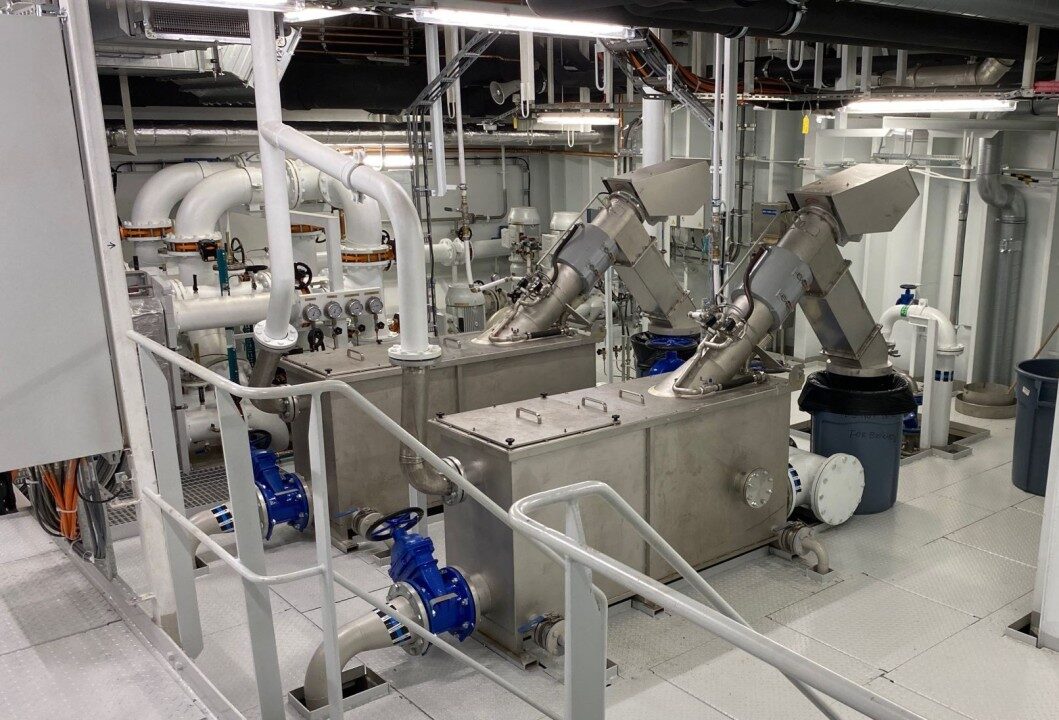

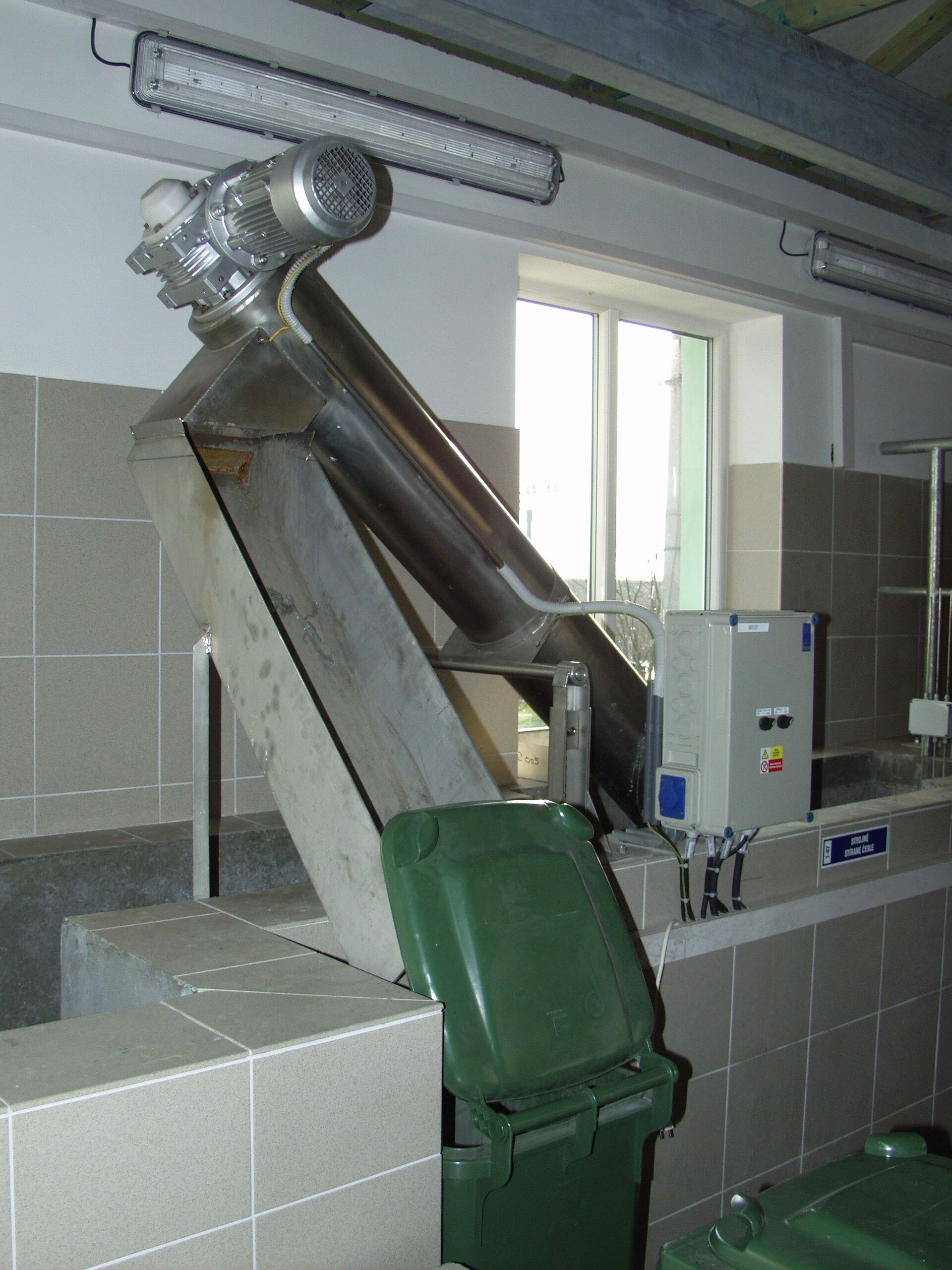

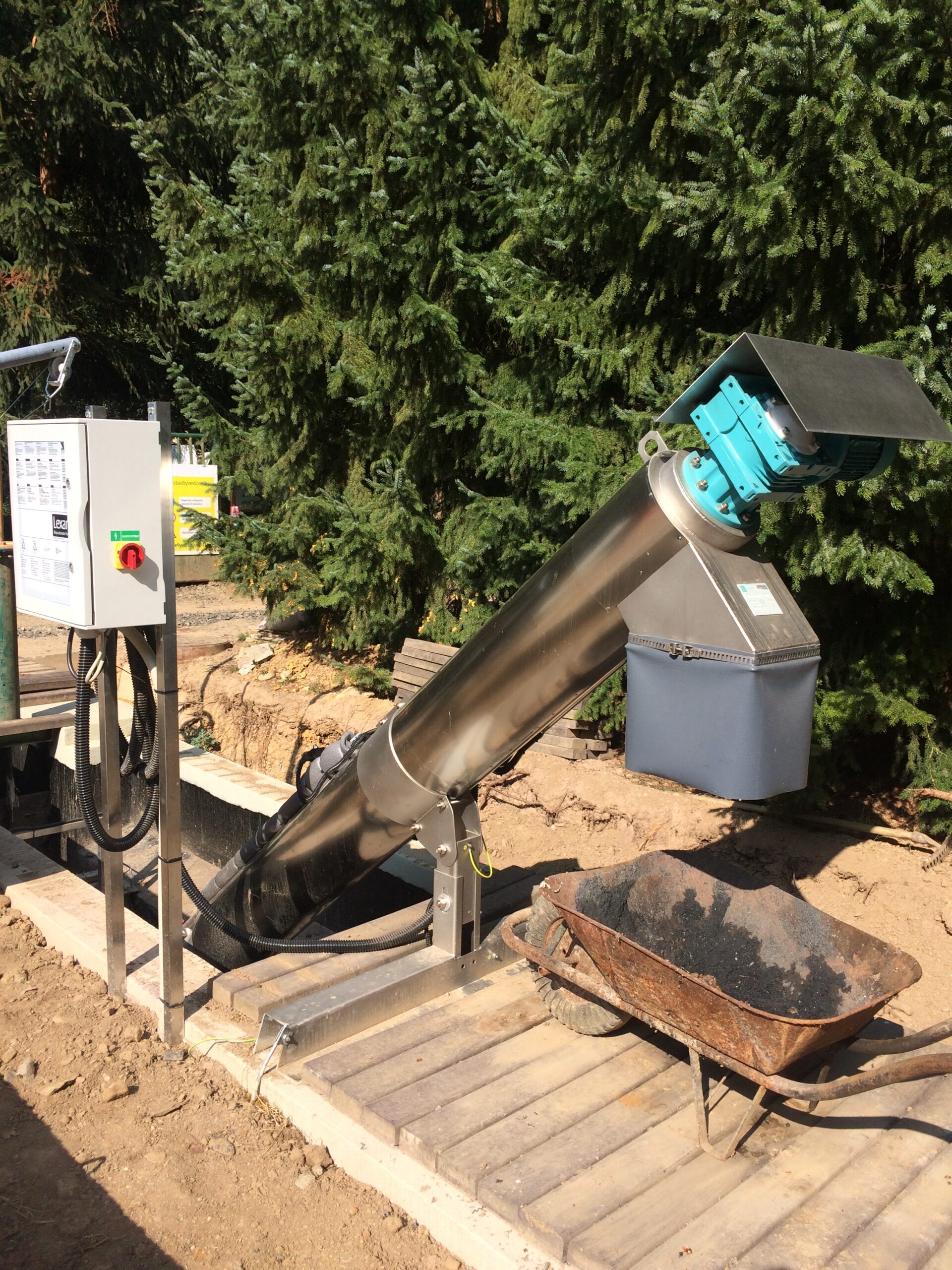

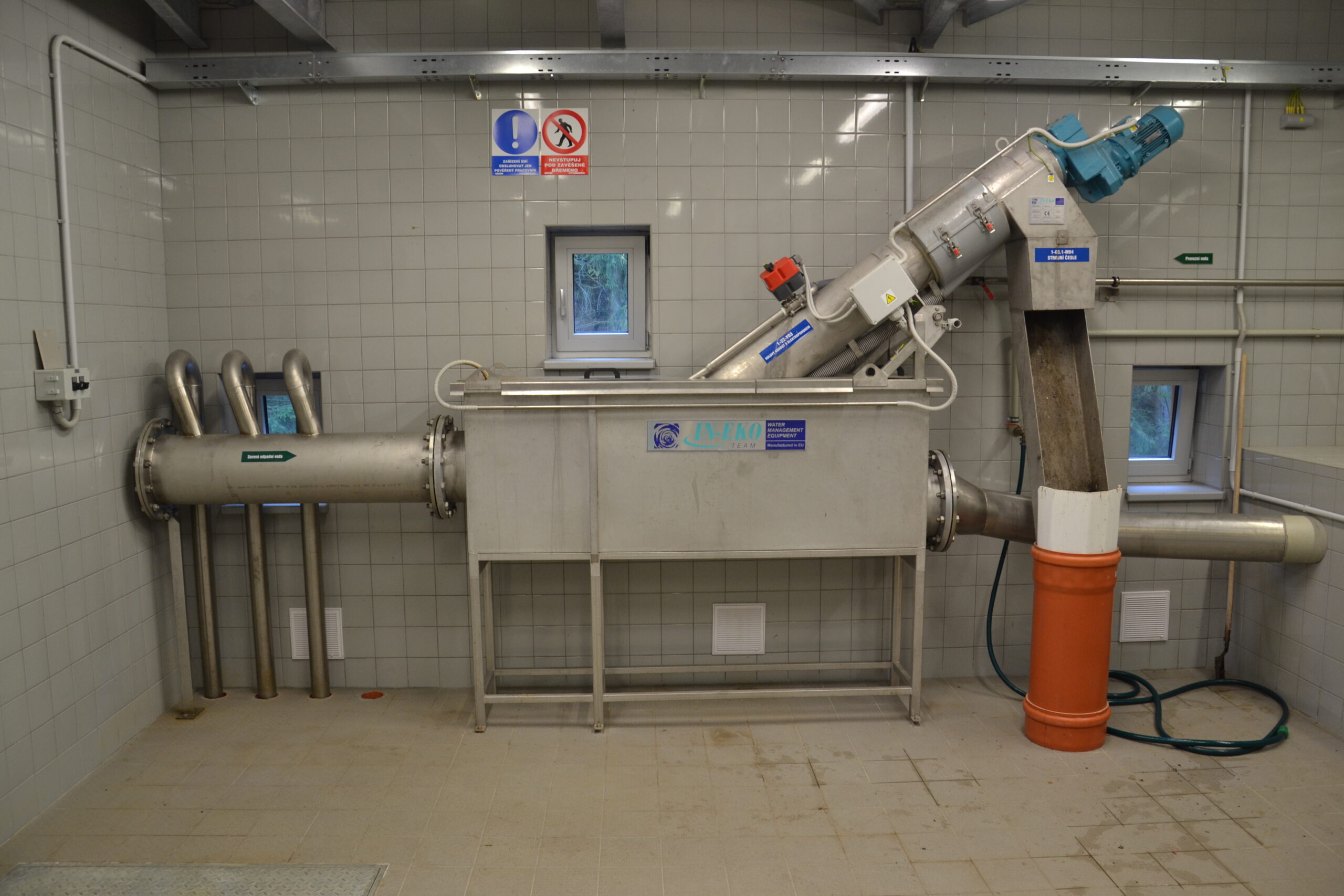

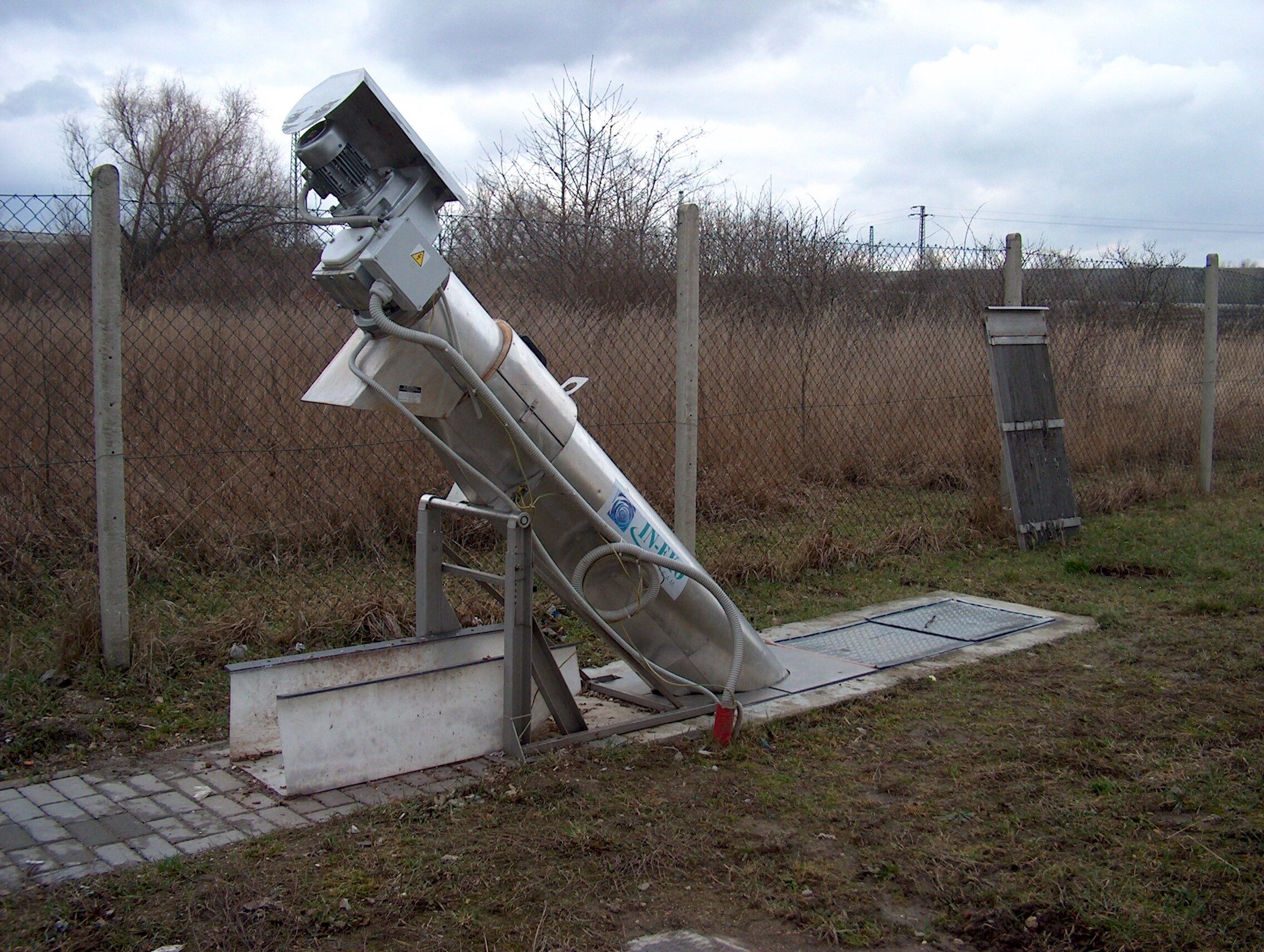

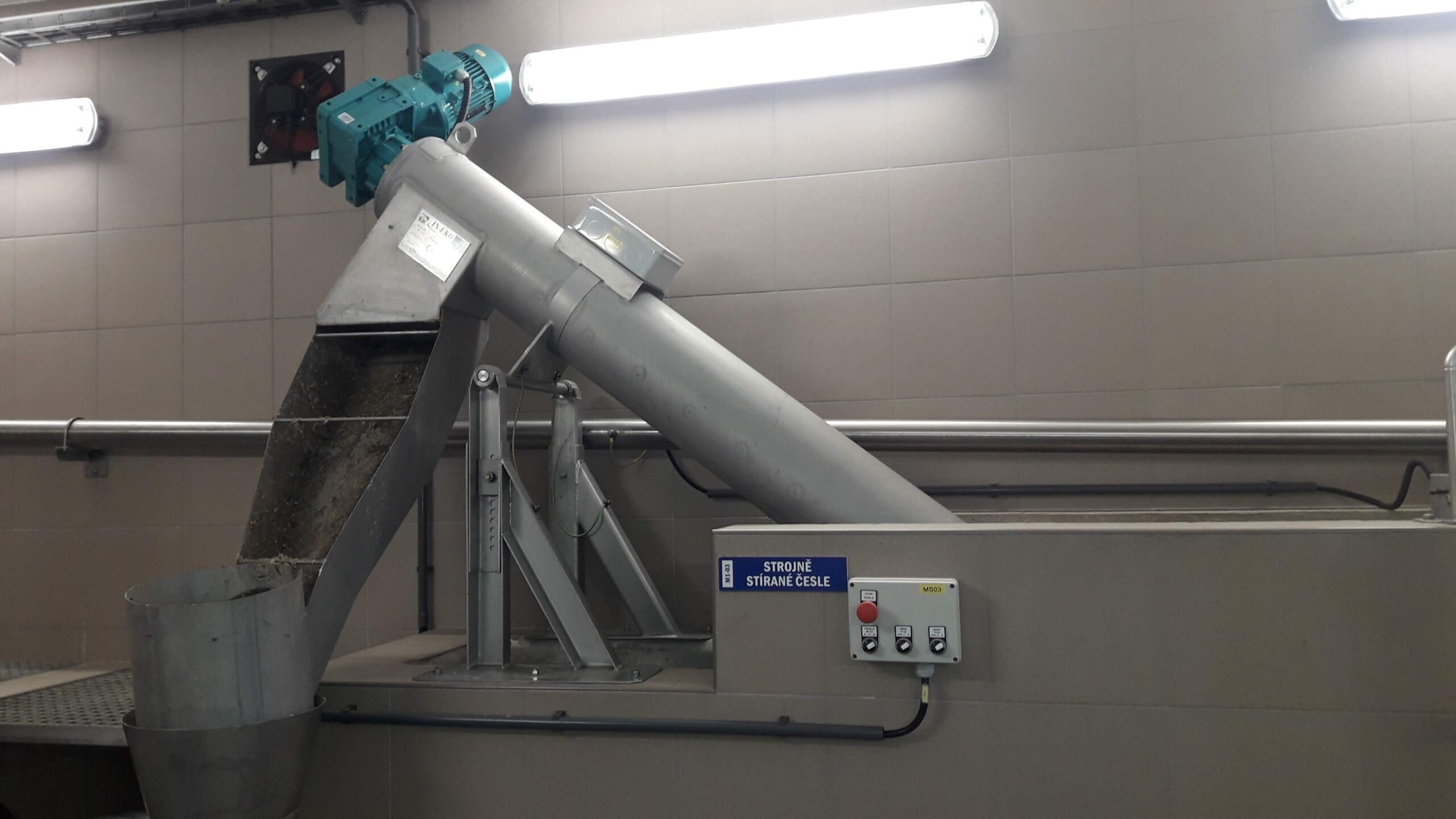

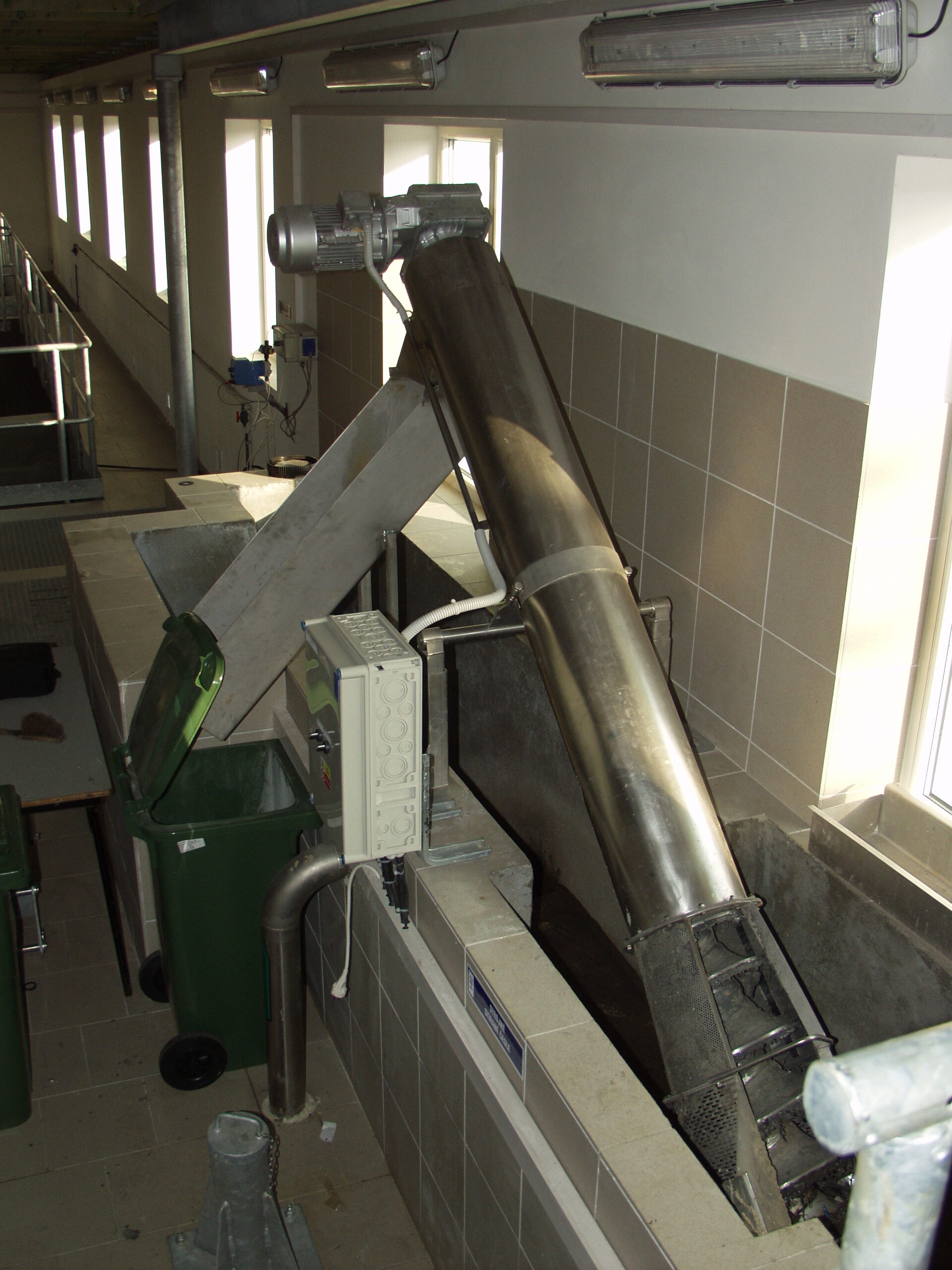

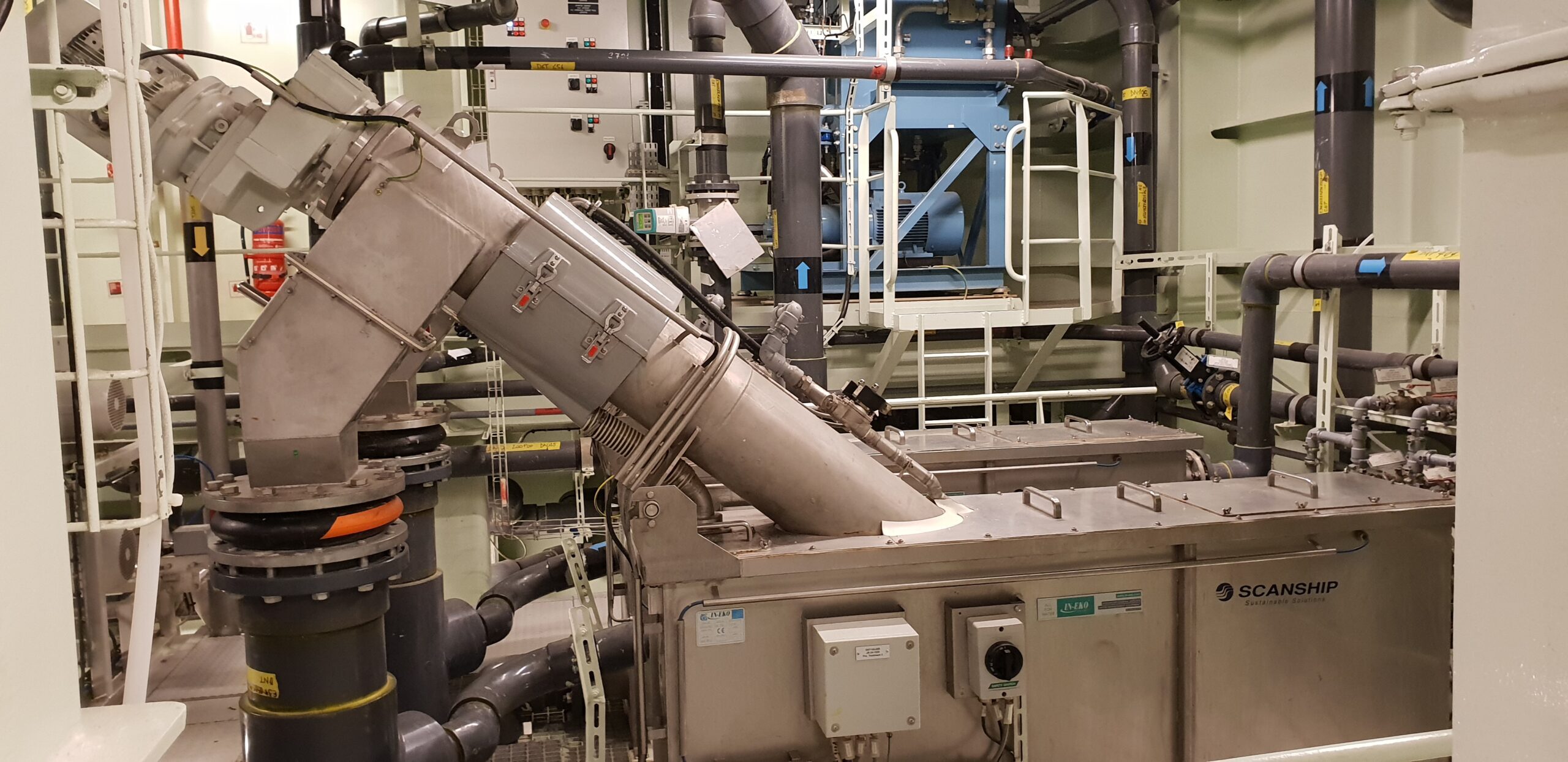

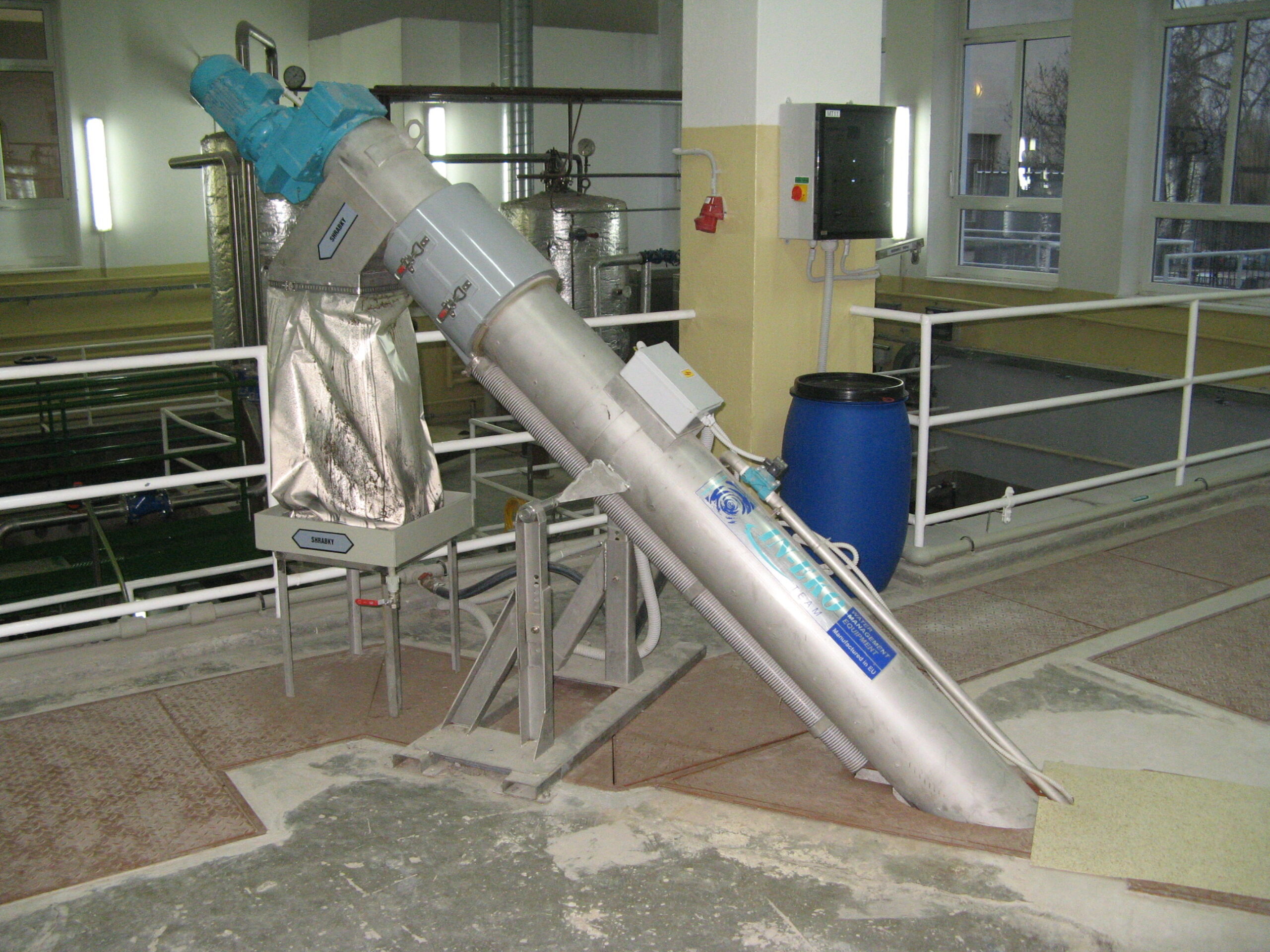

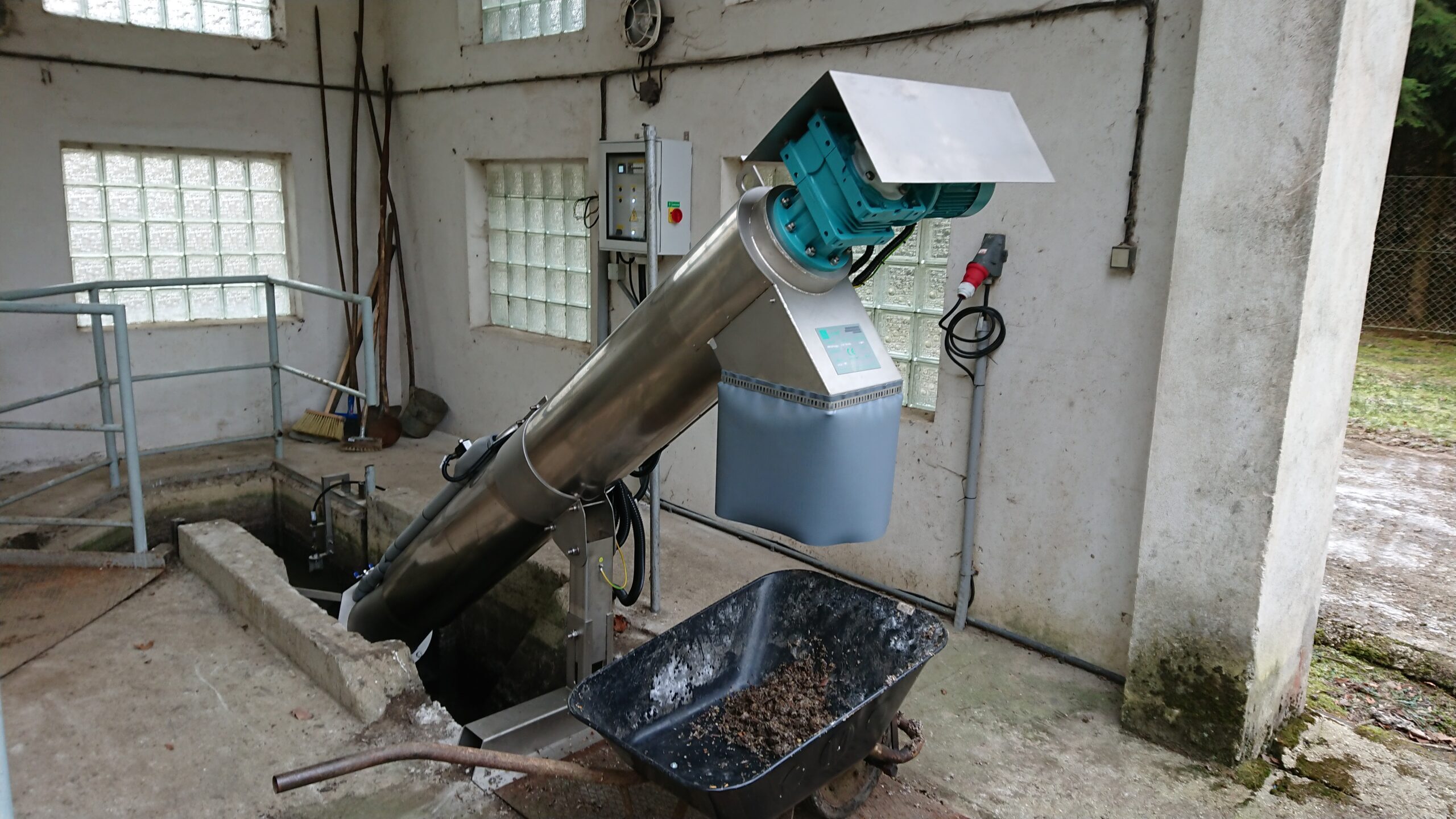

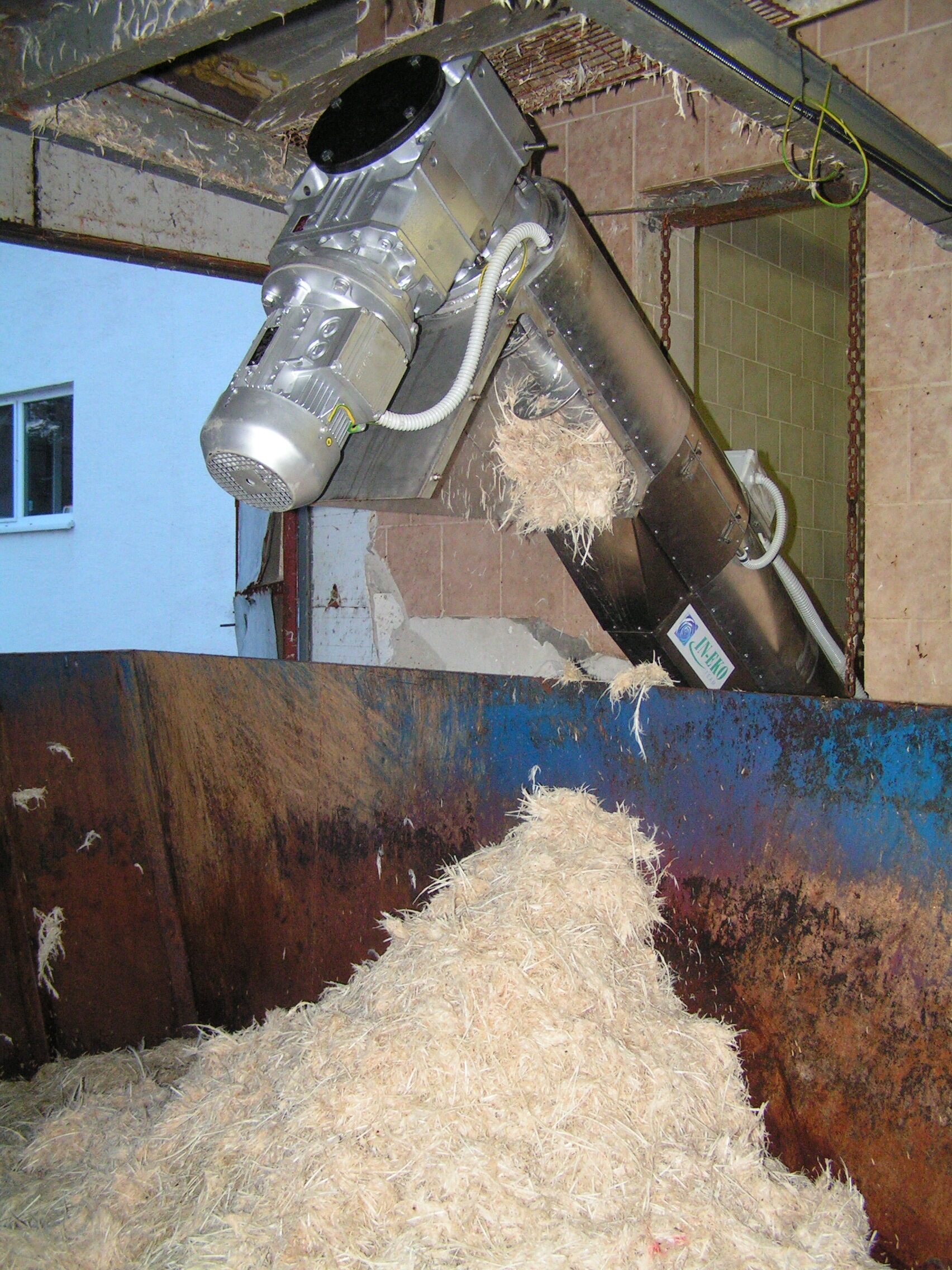

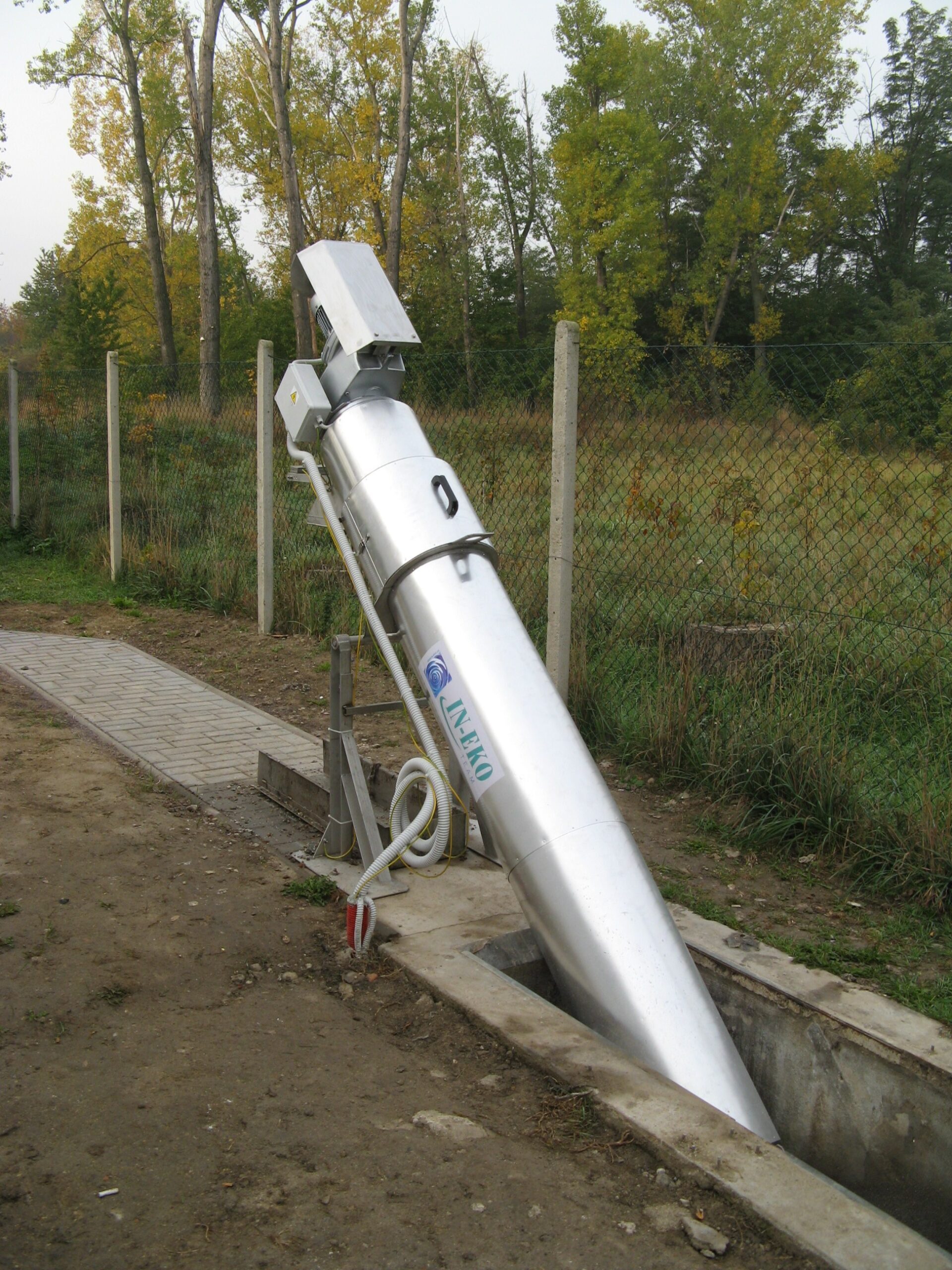

Photos from apps

Size ranges

300, 400, 500 and 600 mm (channel width)

Design

stainless steel AISI 304/316 or higher, high-quality plastics

Control

level probe + PLC, SCADA connection, timer

Slot width

standard 3 or 6 mm, or fully customized

Installation

concrete channel / steel or plastic tank

Straight Screw screen as the ideal solution for pre-treatment of municipal and industrial wastewater

This is a separation unit used to capture and dewater screenings contained in wastewater. The screen is designed to reliably fulfill its function while being undemanding in terms of operation, maintenance, and space.

Straight Screw screen are suitable wherever truly fine pre-treatment using a perforated screen is required.

O nás

Suitable use

municipal WWTPs
industrial WWTPs
recirculation systems
cruise ships

Benefits of IN-EKO TEAM solutions

electricity savings and reduced wear of parts (thanks to timer or level-probe control)
high efficiency in capturing fibrous material
small footprint
integrated emergency overflow
high installation variability
simple design
full operation automation
easy maintenance (thanks to the possibility of tilting the screen into a horizontal position)
remote monitoring – Industry 4.0

Automatic control

depending on the amount of incoming polluted water and suspended solids

Optional modifications

version in steel or plastic tank for pipe connection
cover for reducing odor spread from captured screenings
insulation and heating
integrated press for screenings dewatering and compaction

Smarter operation through innovation

In cooperation with partners, we develop solutions that reduce environmental impact – from energy-efficient components to digitalized operation and remote equipment monitoring.

Sustainability as a foundation

From design to operation, our technologies are created to save resources, energy, and space. This is not a trend – sustainability is a natural part of every piece of equipment we develop.

Our goal is to ensure clean water for future generations.

Technology hub

Why IN-EKO TEAM?

IN-EKO TEAM is a Czech technology company with its own development and research department as well as its own manufacturing facilities. We design, manufacture, and supply top-class wastewater treatment equipment – from municipal wastewater treatment plants and industrial operations to aquaculture.

Our equipment is made of high-quality stainless steel and installed in more than 80 countries worldwide. Thanks to our long-term know-how, patented solutions, and precise workmanship, we offer our partners the reliability of efficient equipment with a long service life, together with after-sales service and commercial support.

We are your partner from the initial design through commissioning to subsequent service inspections.

O nás

WWTP

Industrial operations

Cruise ships

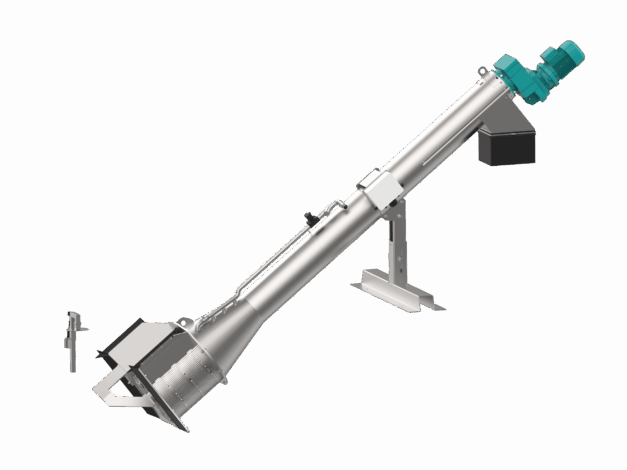

How does the Straight Screw screen work?

Water containing solid particles flows into the inner space of the screen, where it passes through the stainless steel filter screen, which separates screenings larger than the openings in the screen. The screen gradually becomes clogged with screenings, causing the level to rise. Once the set level is reached, the probe switches and the device starts automatically. The captured screenings are lifted by the rotating motion of the screw into the discharge chute, from where they fall, for example, into a prepared bin or container. In the area of the filter screen, the lifting screw is fitted with a wiping brush for efficient cleaning of the screen. Water free of floating impurities larger than the opening size flows to a possible next treatment stage.
