Vertical Screw screen

Ideal solution for fine wastewater pre-treatment Pre-treatment

Vertical Bar screens are among the key pieces of equipment for pump protection in pumping stations. They are also used as a mechanical pre-treatment stage in various municipal and industrial applications.

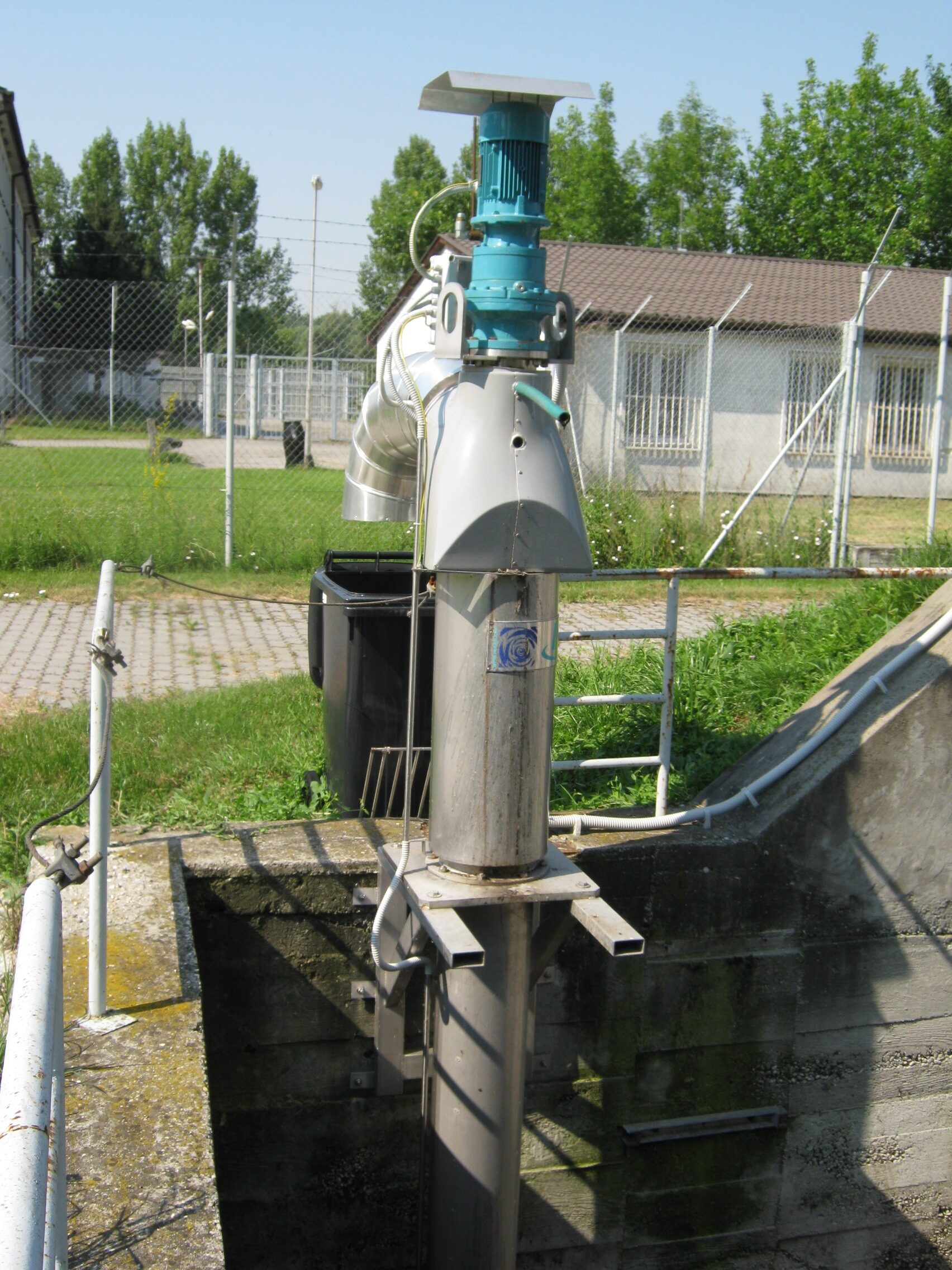

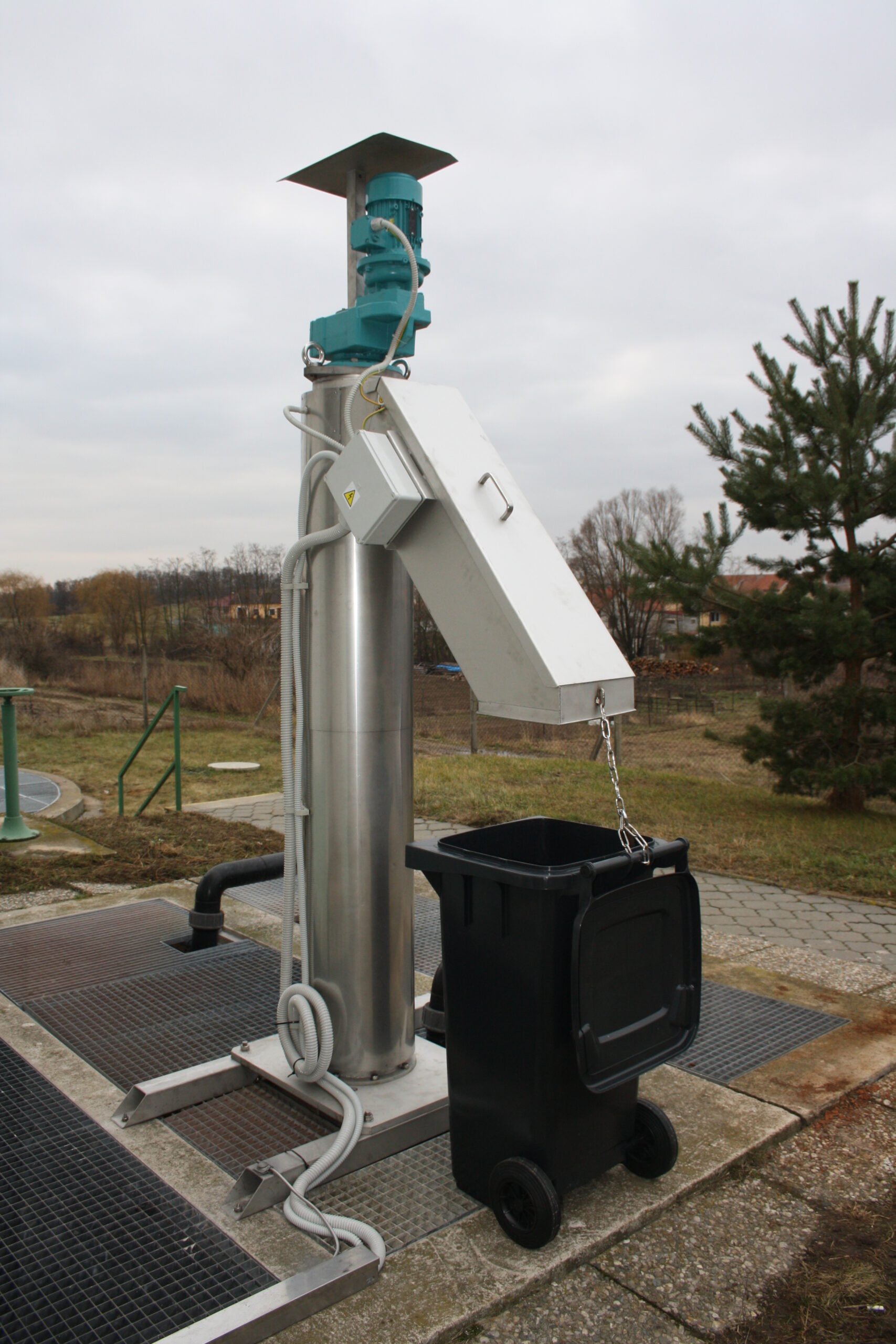

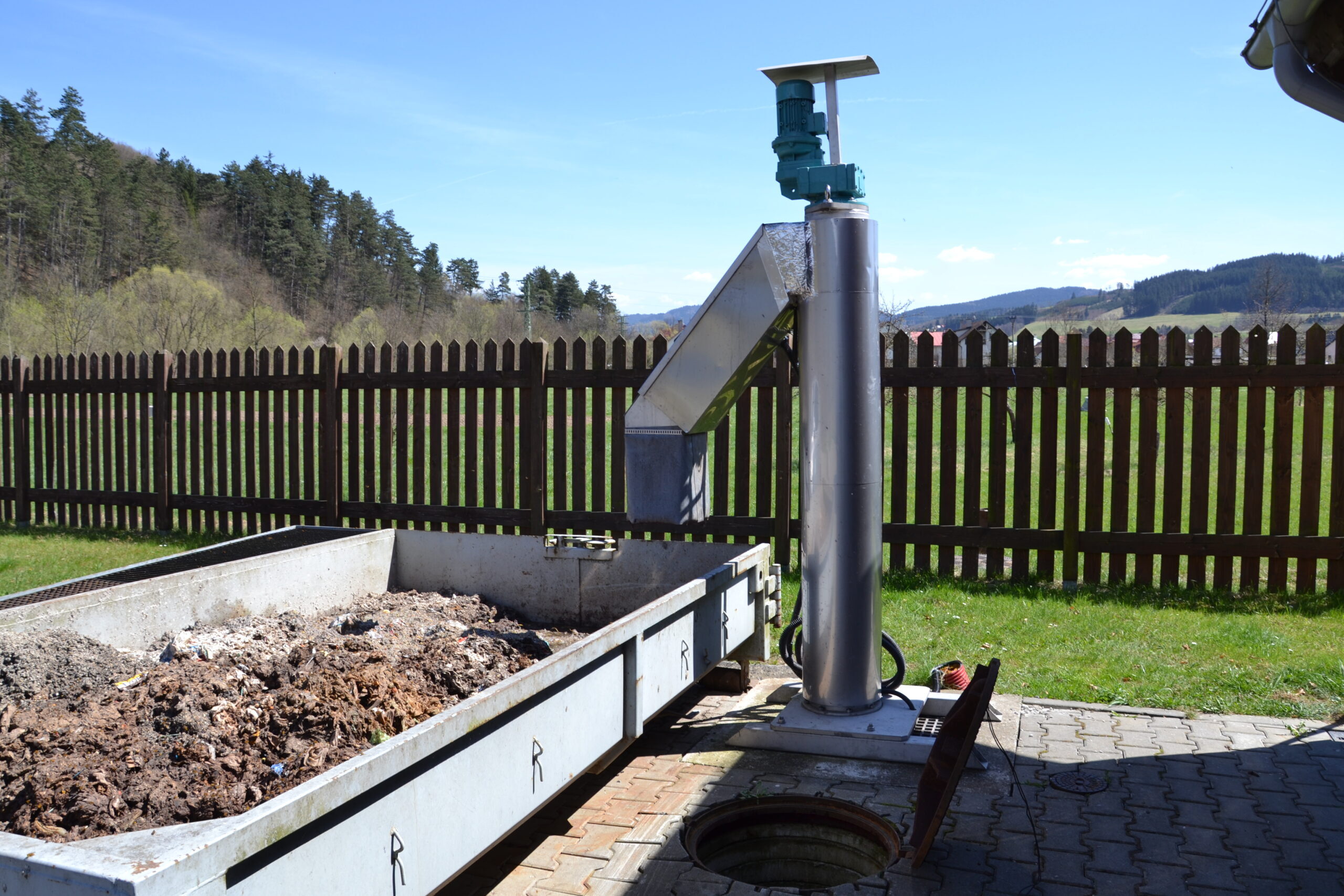

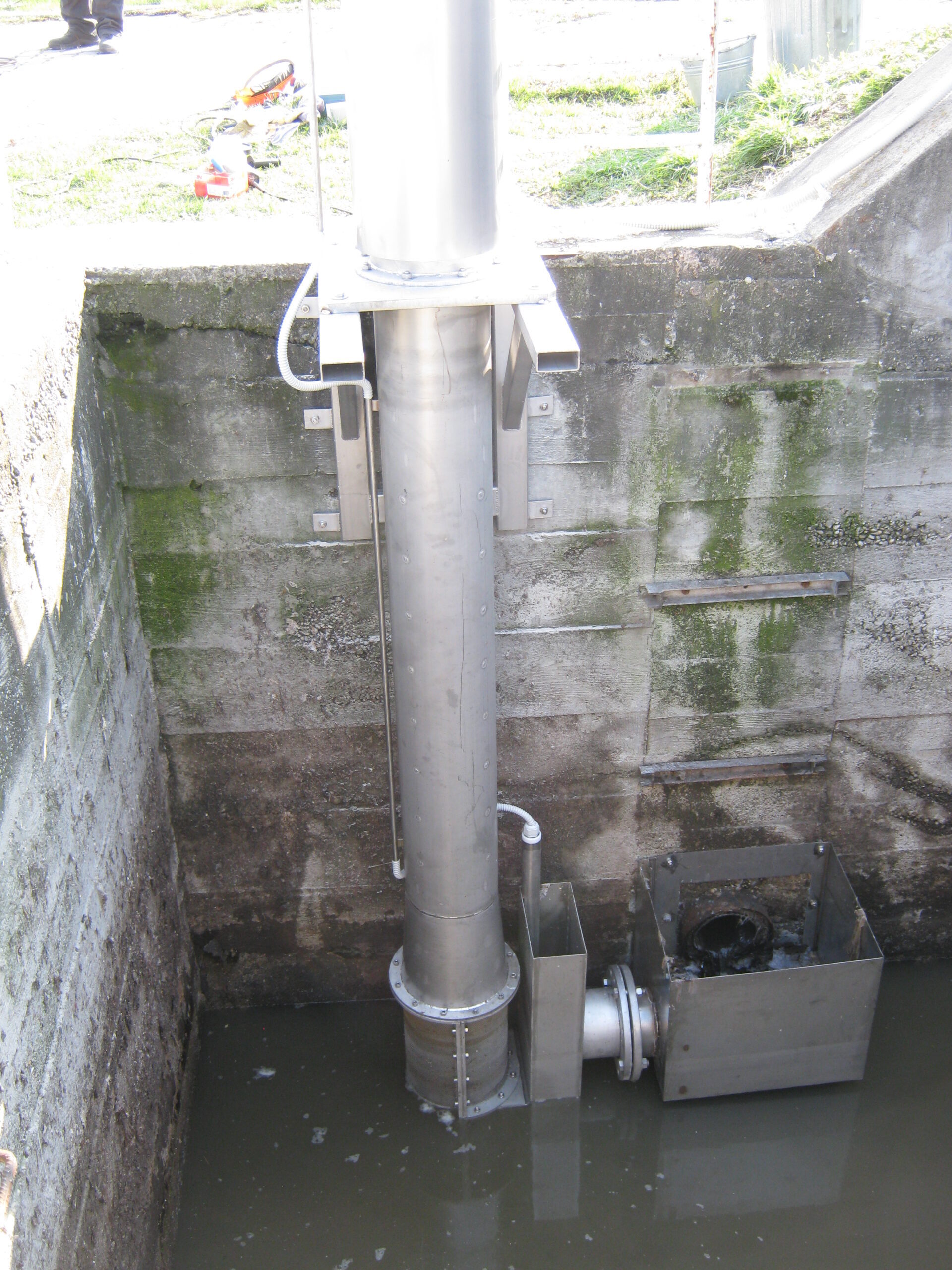

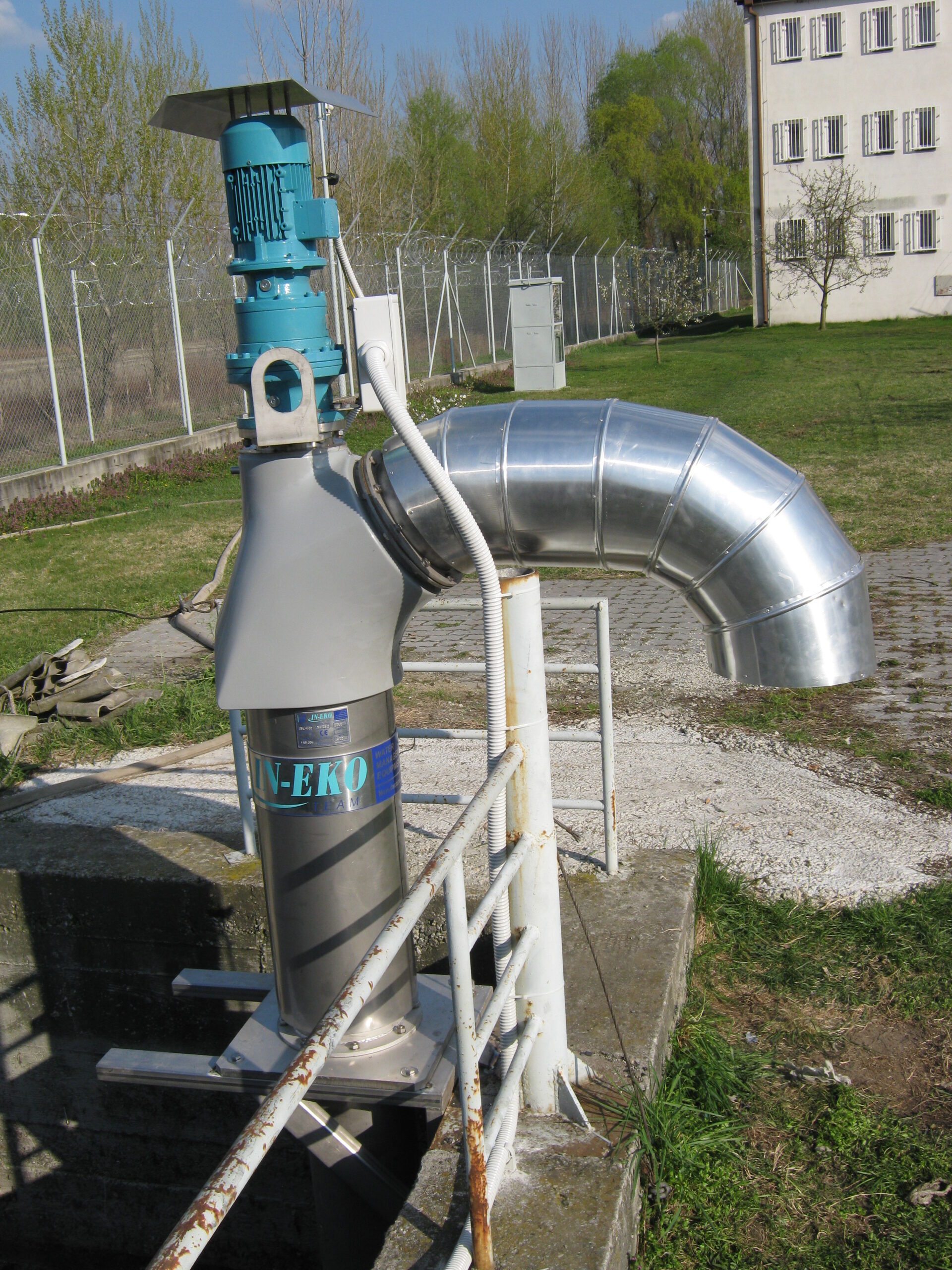

Photos from apps

Slot width

standard 3 or 6 mm, or fully customized

Design

stainless steel AISI 304 / 316 or higher

Control

level probe + PLC, SCADA connection, timer

Installation

concrete pit / shaft

Straight Screw screen for municipal and industrial applications

The screens can be installed wherever, due to layout constraints, there is not enough space for installation of conventional screen types or where the sewer is laid at great depth – in such cases the screens ensure protection of pumps in the pumping station.

Vertical Bar screens are the ideal automated replacement for outdated basket screens.

Aplikace

Suitable use

pump protection in pumping stations
automated replacement for basket screens
municipal WWTPs
industrial applications

Benefits of IN-EKO TEAM solutions

suitable for pump protection in pumping stations
installation suitable even in small and narrow spaces or where the sewer is at great depth
capture and transport of screenings
short installation length of the equipment
considerable variability of connection methods and conveyor screw length
full operation automation
screen function ensured even when flooded in the pit
remote monitoring – Industry 4.0

Automatic screen operation

Automatic screen operation is ensured by a level probe, which gives an impulse for cleaning the perforated screen in combination with time switching.

Screenings

In the vertical screw, screenings are partially dewatered thanks to gravity and the logic of screw conveyor operation.

Optional modifications

Integrated press – screenings dewatering
Insulation and heating

Smarter operation through innovation

In cooperation with partners, we develop solutions that reduce environmental impact – from energy-efficient components to digitalized operation and remote equipment monitoring.

Sustainability as a foundation

From design to operation, our technologies are created to save resources, energy, and space. This is not a trend – sustainability is a natural part of every piece of equipment we develop.

Our goal is to ensure clean water for future generations.

Technology hub

Why IN-EKO TEAM?

IN-EKO TEAM is a Czech technology company with its own development and research department as well as its own manufacturing facilities. We design, manufacture, and supply top-class wastewater treatment equipment – from municipal wastewater treatment plants and industrial operations to aquaculture.

Our equipment is made of high-quality stainless steel and installed in more than 80 countries worldwide. Thanks to our long-term know-how, patented solutions, and precise workmanship, we offer our partners the reliability of efficient equipment with a long service life, together with after-sales service and commercial support.

We are your partner from the initial design through commissioning to subsequent service inspections.

O nás

WWTP

How does the Vertical Screw screen work?

Wastewater flows into a filter screen made of perforated sheet metal, where incoming screenings are captured. The screen gradually becomes clogged with screenings, causing the level to rise. Once the set level is reached, the probe switches and the device starts automatically. The captured screenings are lifted by the rotating motion of the screw into the discharge chute, from where they fall, for example, into a prepared bin or container. In the area of the filter screen, the lifting screw is fitted with a wiping brush for efficient cleaning of the screen. Water free of floating impurities larger than the opening size flows to a possible next treatment stage or for pumping. During their transport by the vertical screw conveyor, the screenings are partially dewatered thanks to gravity and the logic of screen operation.
